Front Scuff Plate Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

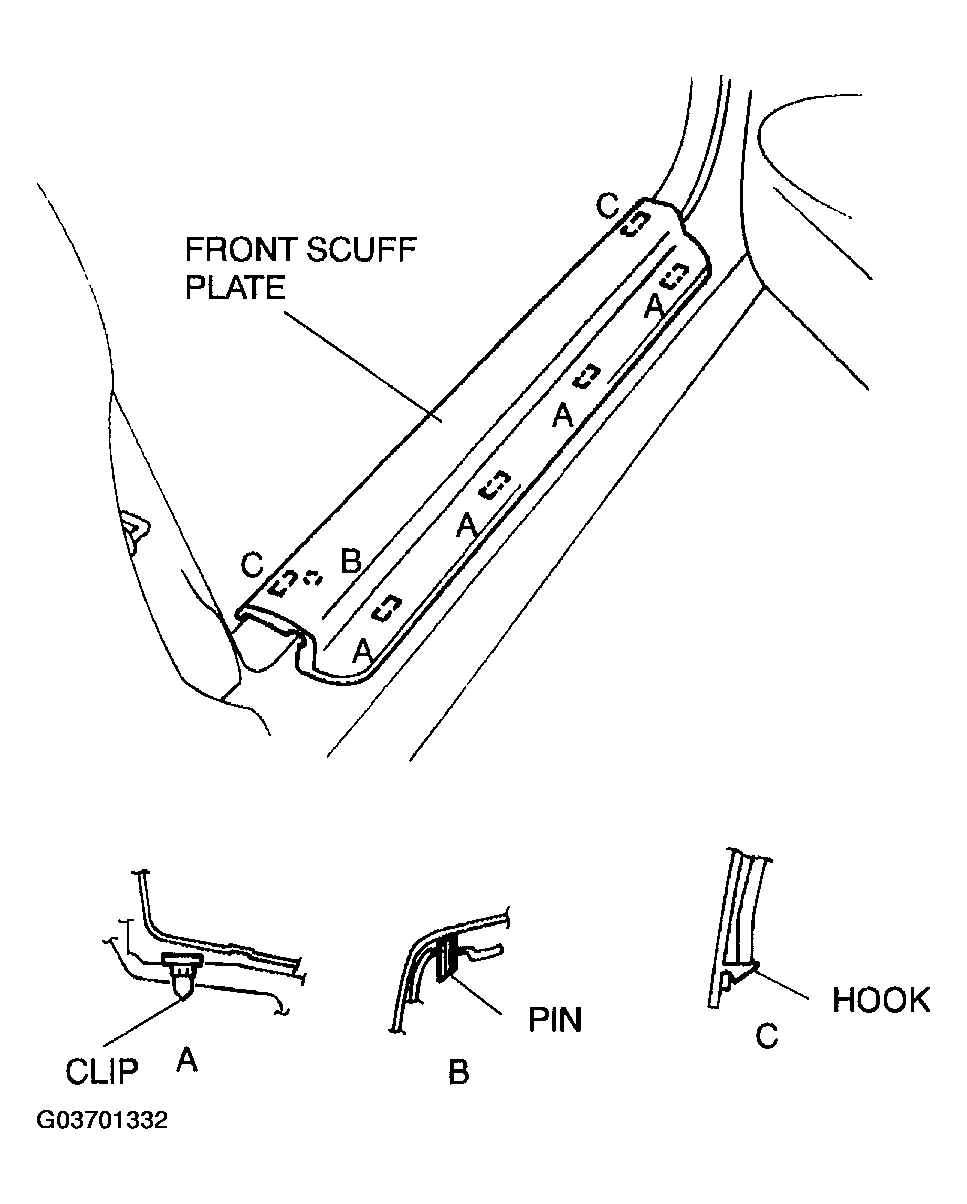

- Pull the front scuff plate upward, then disengage clips A, pin B and hooks C from the body, and remove the front scuff plate.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
