Sliding Door Upper Frame Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the sliding door garnish. (See SLIDING DOOR GARNISH REMOVAL/INSTALLATION .)
- Remove the fastener.

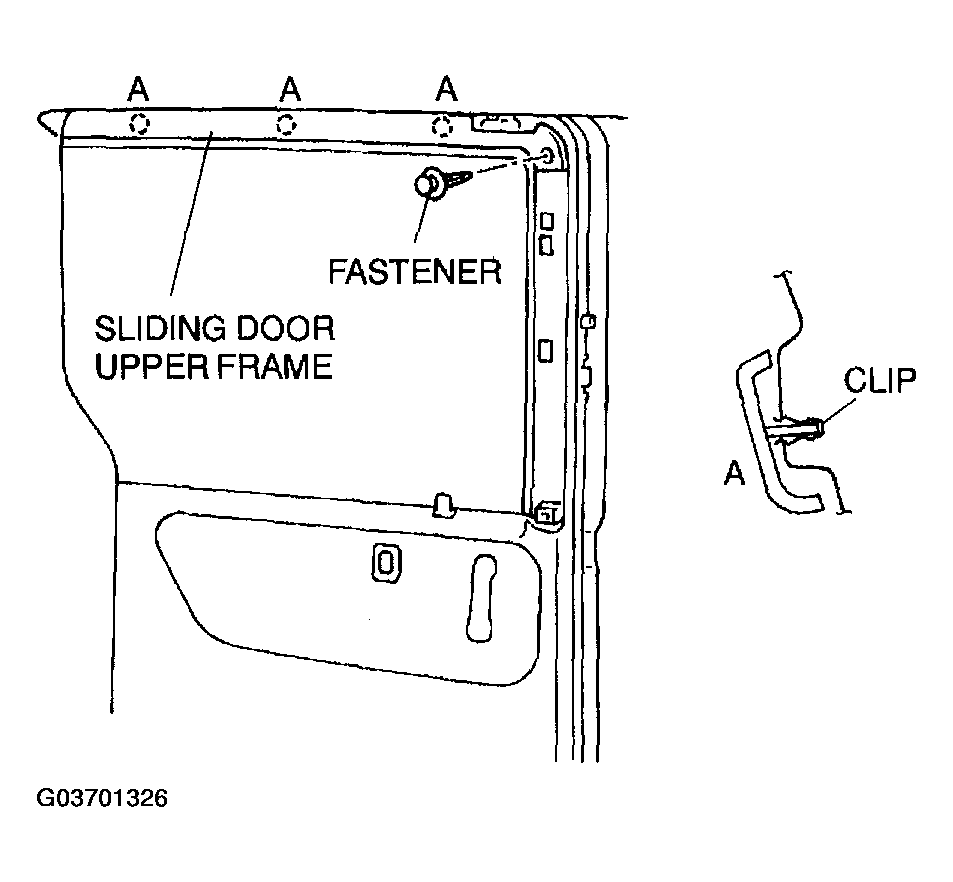

- Pull the sliding door upper frame toward you, then disengage clips A from the body, and remove the sliding door upper frame.
- Install in the reverse order of removal.
