Glove Compartment Light Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable.
  2. Remove in the order indicated in the table.

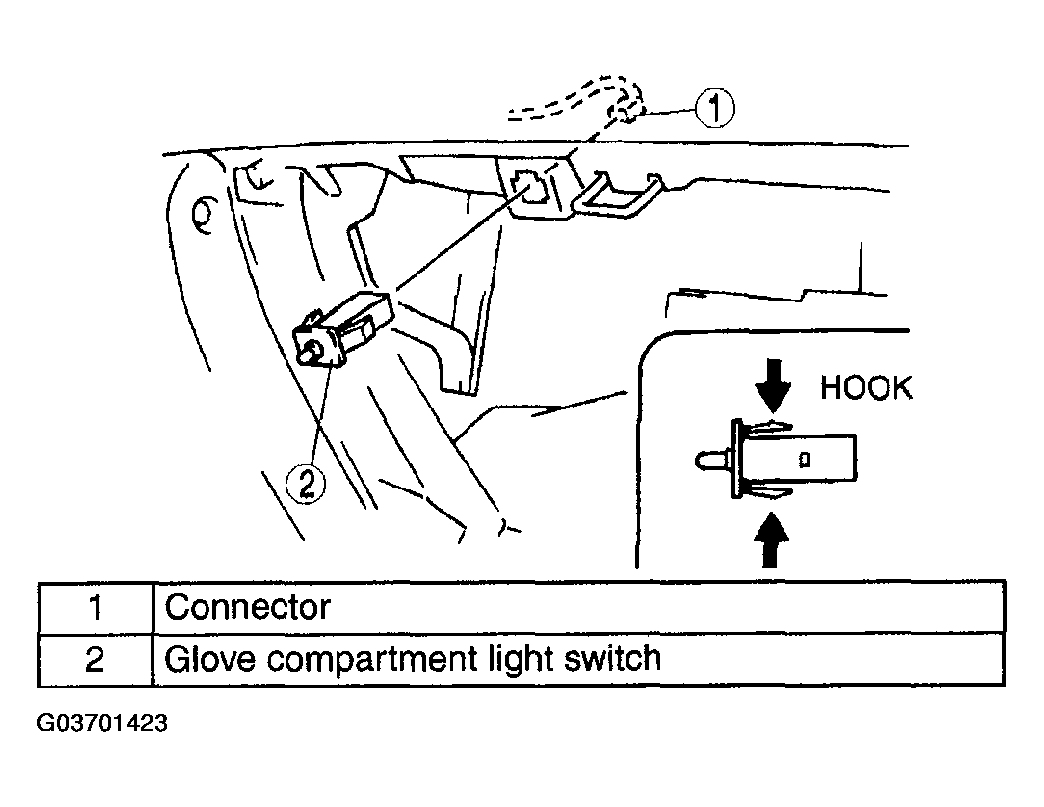

    Fig 1: Removing Glove Compartment Light Switch
    G03701423Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse of removal.
