With Sliding Sunroof

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

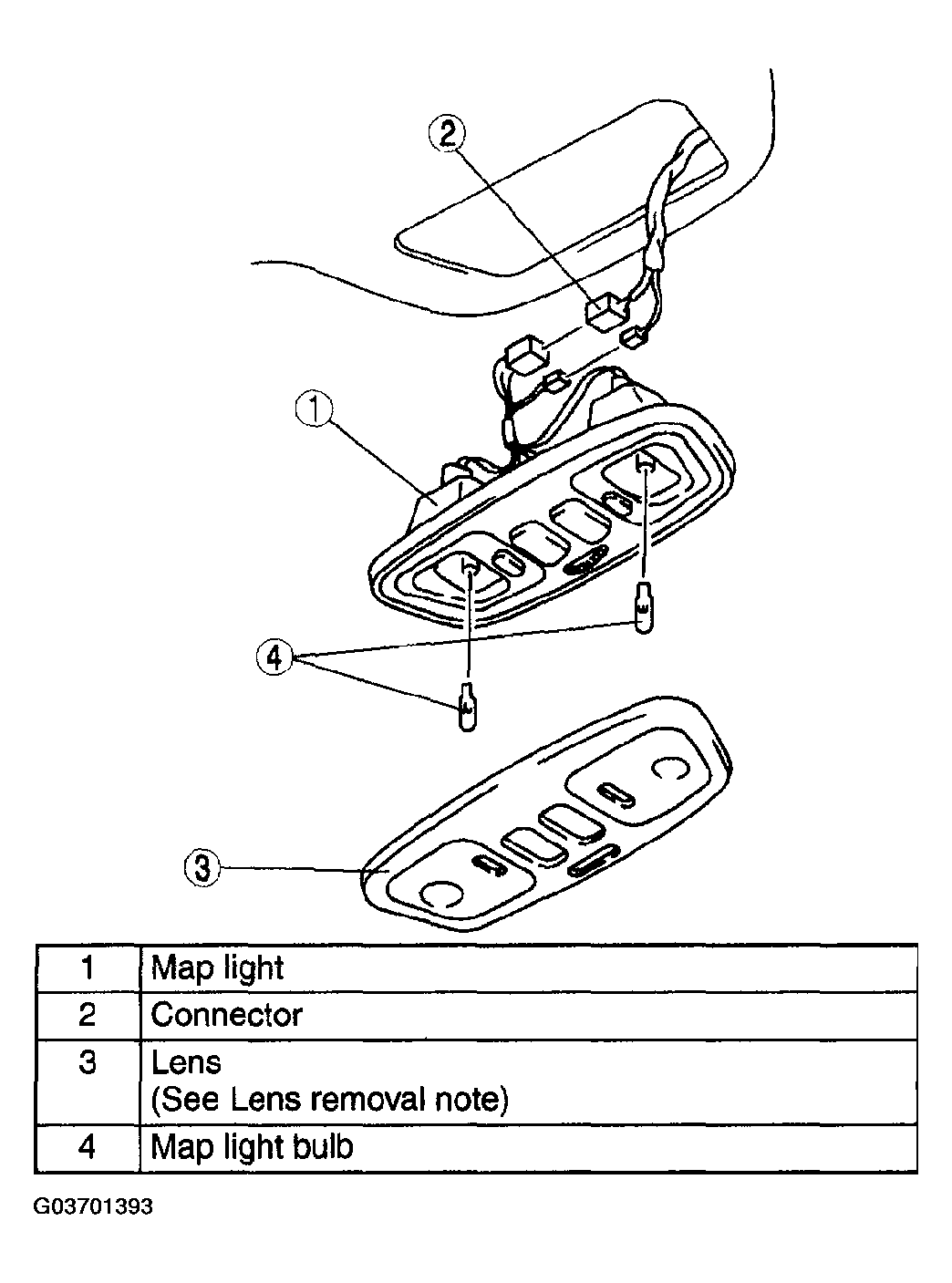

    Fig 1: Removing MAP Light (With Sliding Sunroof)
    G03701393Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
