Mounting Rubber Removal Note

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Suspend the engine using the SSTs.

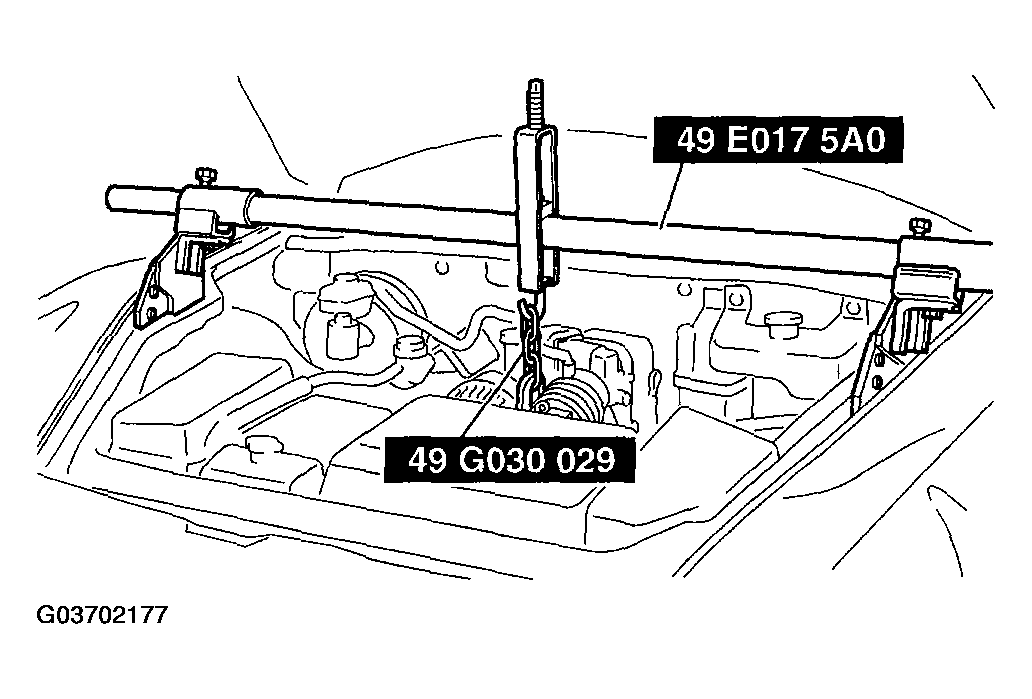

Fig 1: Suspending The Engine Using SSTs
Courtesy of MAZDA MOTORS CORP.
Support the front crossmember using a jack.
WARNING:
- Verify that the crossmember component is securely supported by a jack. If the crossmember component falls, it could cause serious injury or death, or damage to the vehicle.
Remove the transverse member.
Remove the mounting rubber while gradually lowering the front crossmember.

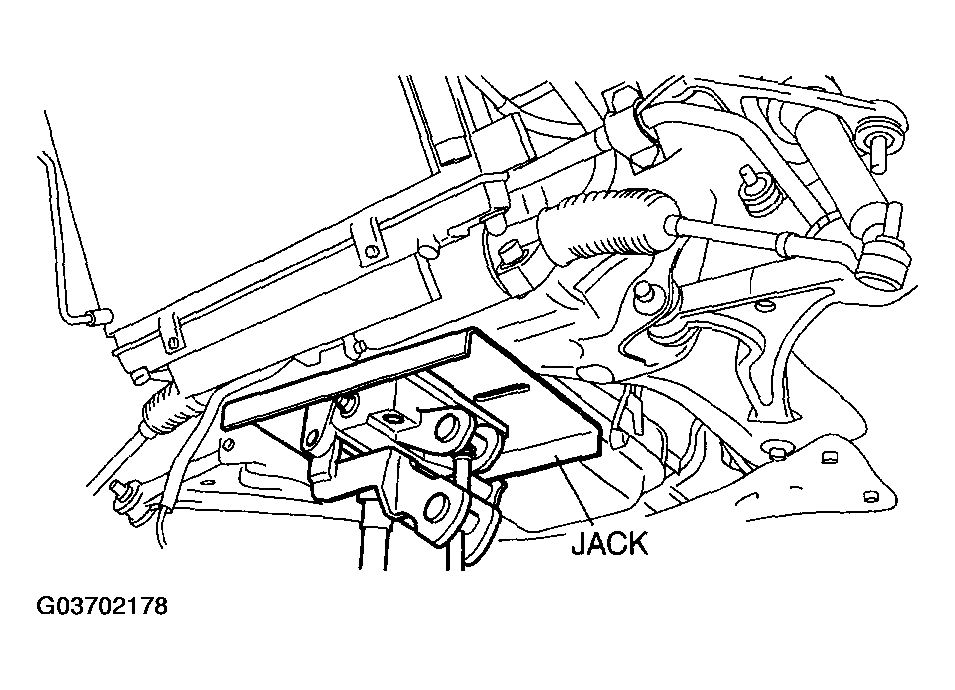

Fig 2: Supporting The Front Crossmember Using Jack
Courtesy of MAZDA MOTORS CORP.
