Bushing Removal Note
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

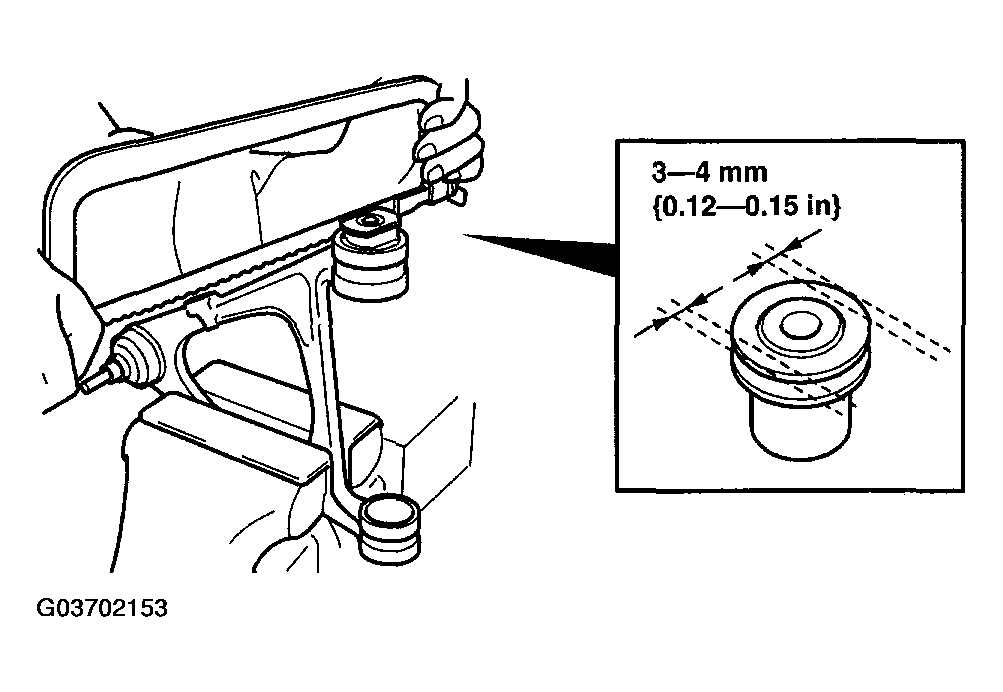

- Cut off 3-4 mm {0.12-0.15 in}
from each side of the bushing knob using a hacksaw.
Courtesy of MAZDA MOTORS CORP.
- Remove the bushing using the SSTs
and a press.
Courtesy of MAZDA MOTORS CORP.
