Rear Seat Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

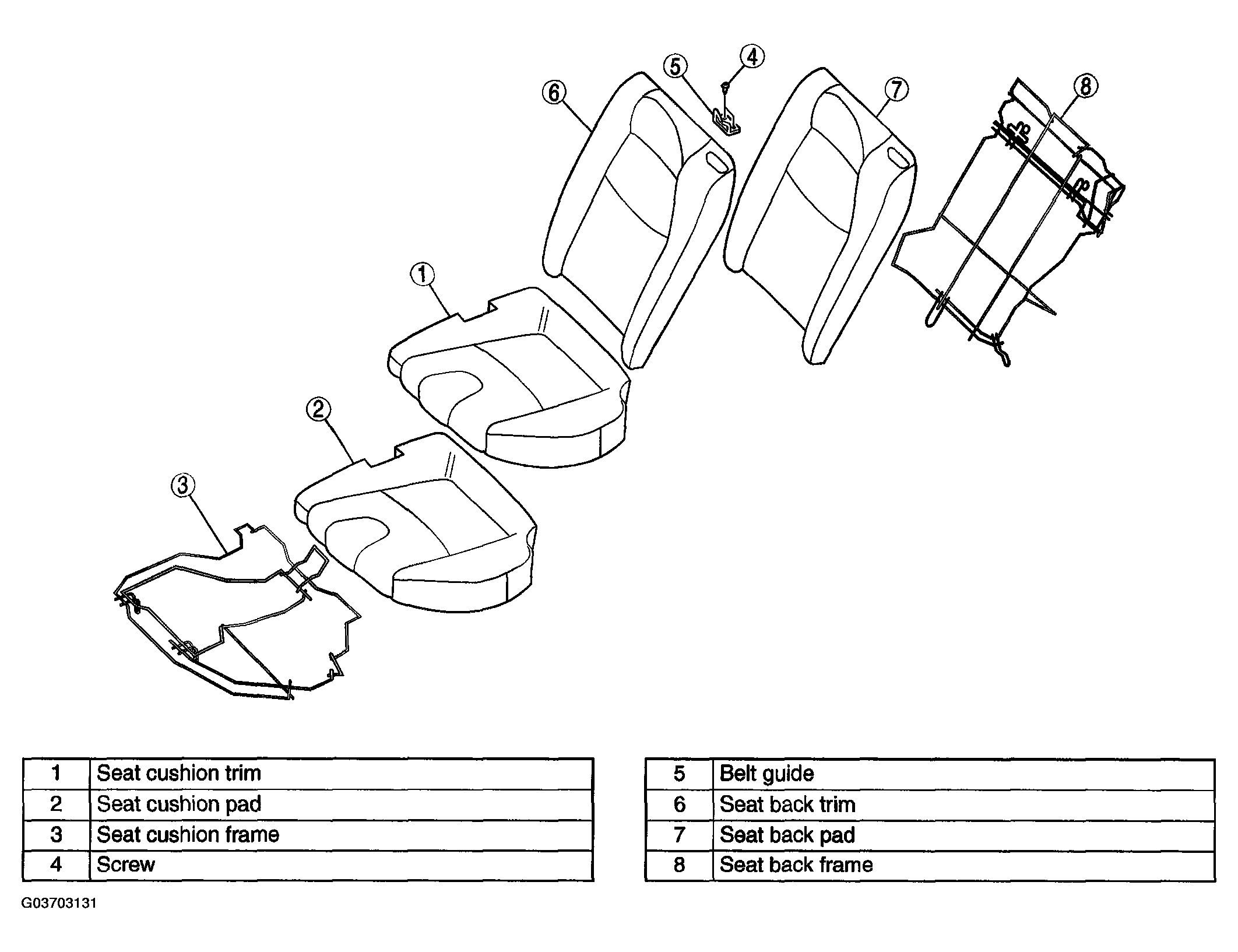

Fig 1: Disassembling View Of Rear Seat
Courtesy of MAZDA MOTORS CORP.
