Information Display Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
Remove the center panel module. (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
Remove the LCD unit. (See LCD UNIT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

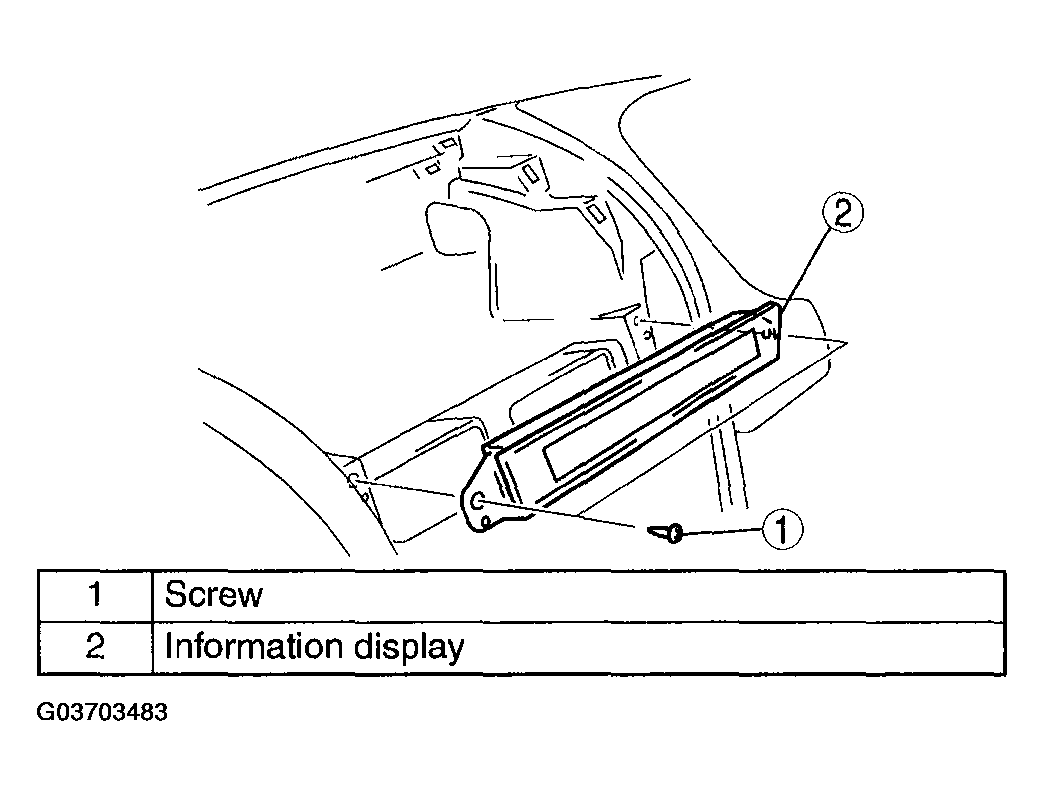

Fig 1: Removal And Installation Of Information Display
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
