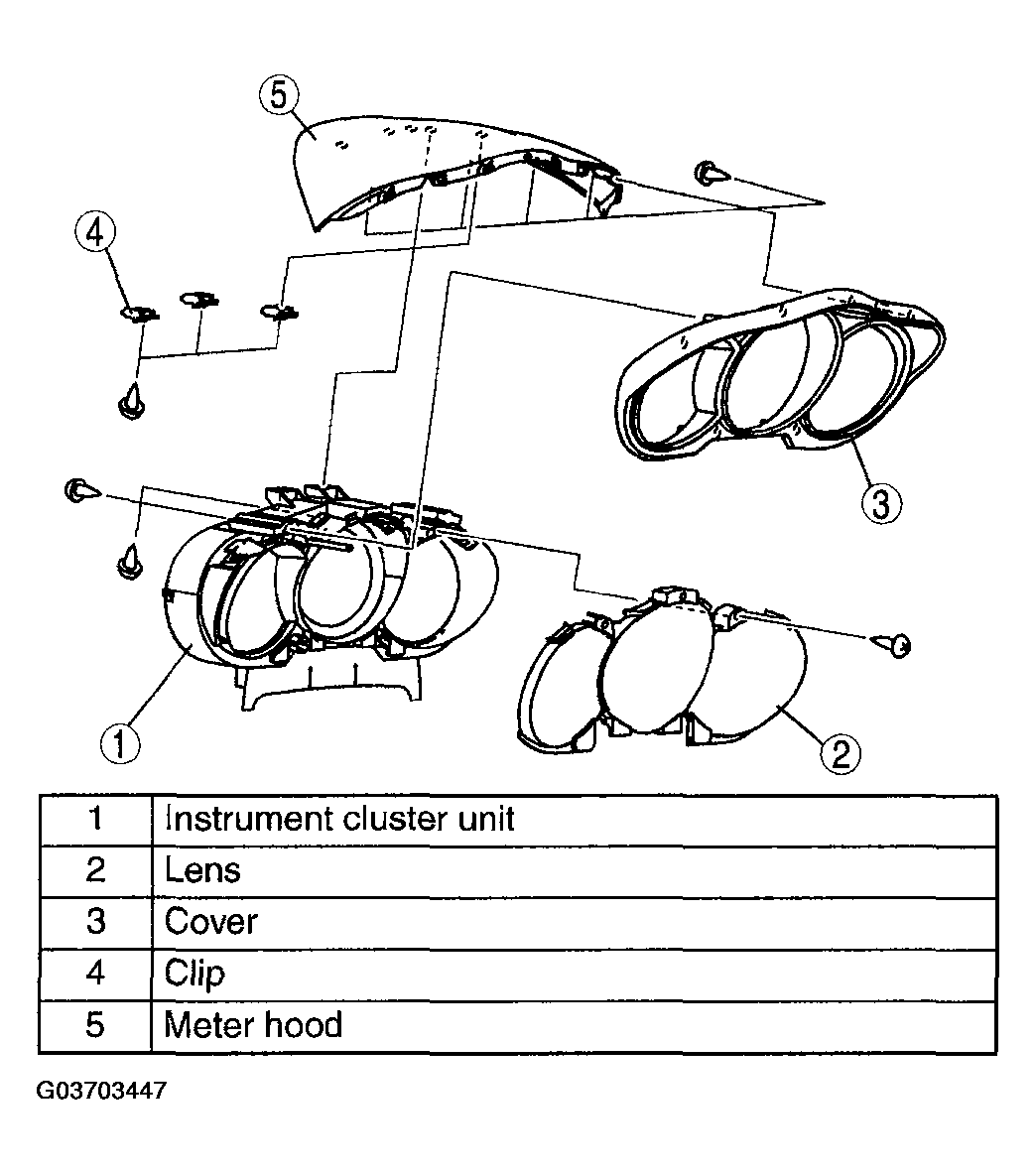

Instrument Cluster Disassembly/Assembly
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.
- Disassemble in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- Assemble in the reverse order of disassembly.
