Component Locations
WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

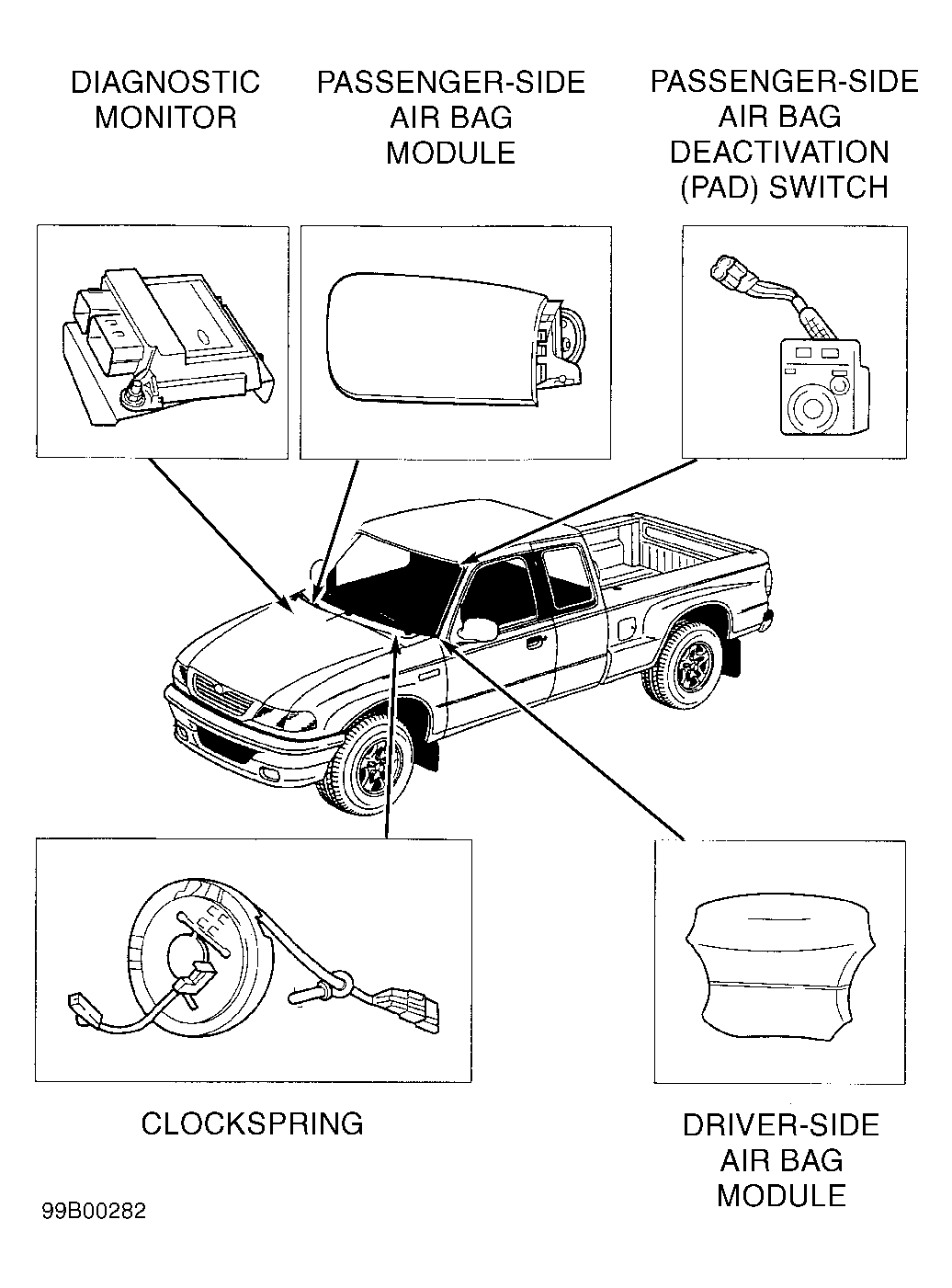

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Driver-side air bag module | Center of steering wheel | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Passenger-Side Air Bag Deactivate (PAD) switch | Center of instrument panel | ||
| Restraints control module | On tunnel, beneath utility tray | ||
| Seat belt pretensioners | Integrated with front seat belt buckles | ||
|
|||
