Propeller Shaft Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the crossmember bracket. (See CROSSMEMBER BRACKET REMOVAL/INSTALLATION .)
- Remove the rear crossbar (only vehicle equipped with 16 inch wheel). (See DIFFERENTIAL REMOVAL/INSTALLATION .)
- Remove the presilencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)

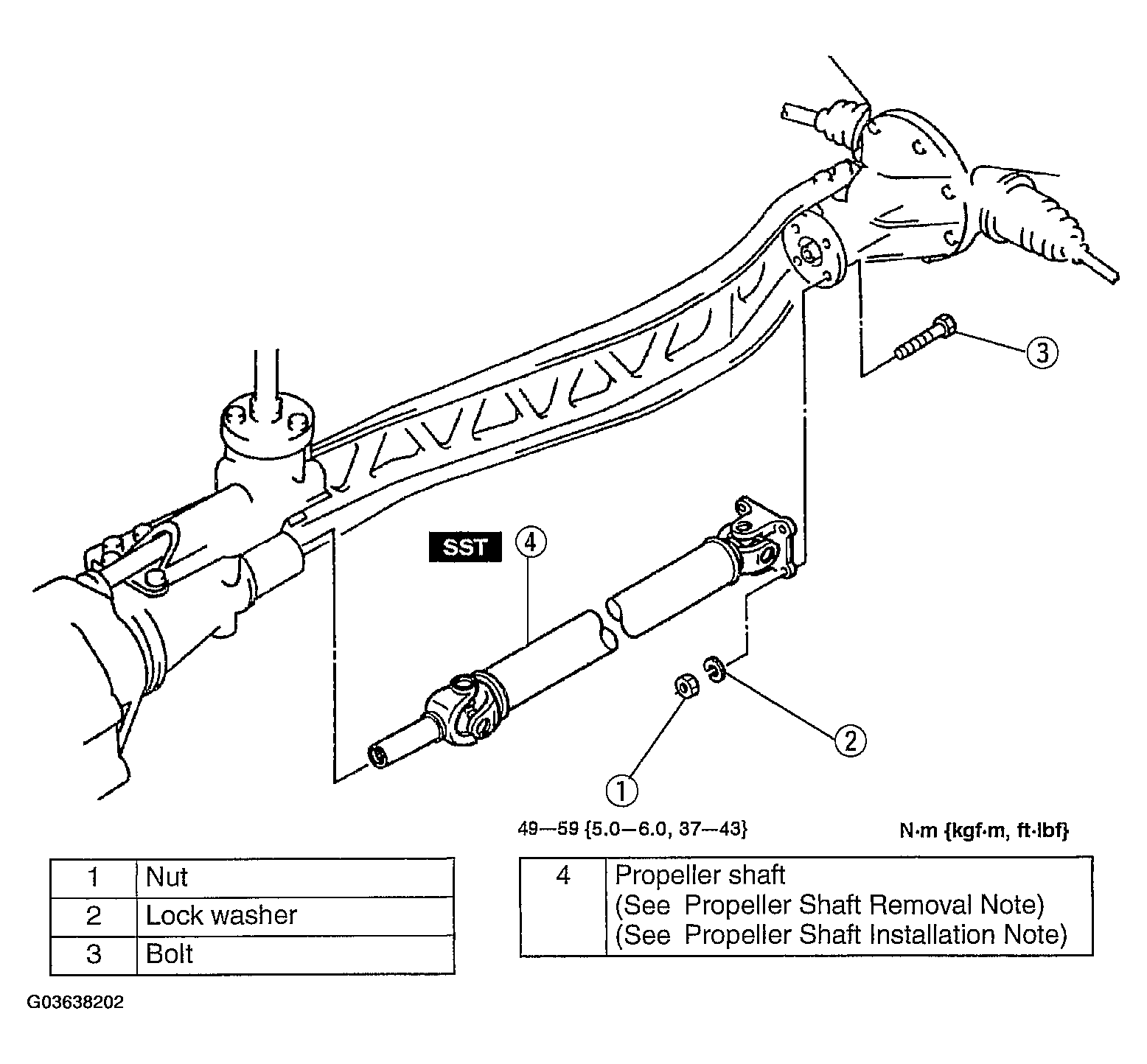

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
