Thermoswitch Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Insert the thermoswitch probe in location as shown in Fig 1.

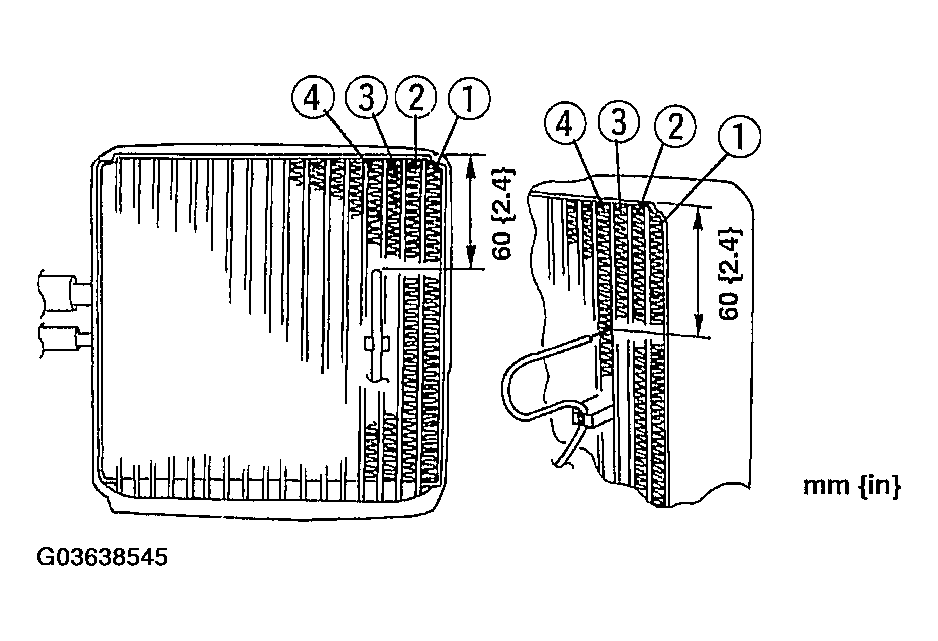

Fig 1: Identifying Thermoswitch Assembly
Courtesy of MAZDA MOTORS CORP.
