End Plate Assembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Unfold the convertible top half-way.
Pass the cables through the cable guides.
Install the cables to the rear of the link.
Fold the convertible top.

Fig 1: Installing Cables To Rear Of Link
Courtesy of MAZDA MOTORS CORP.

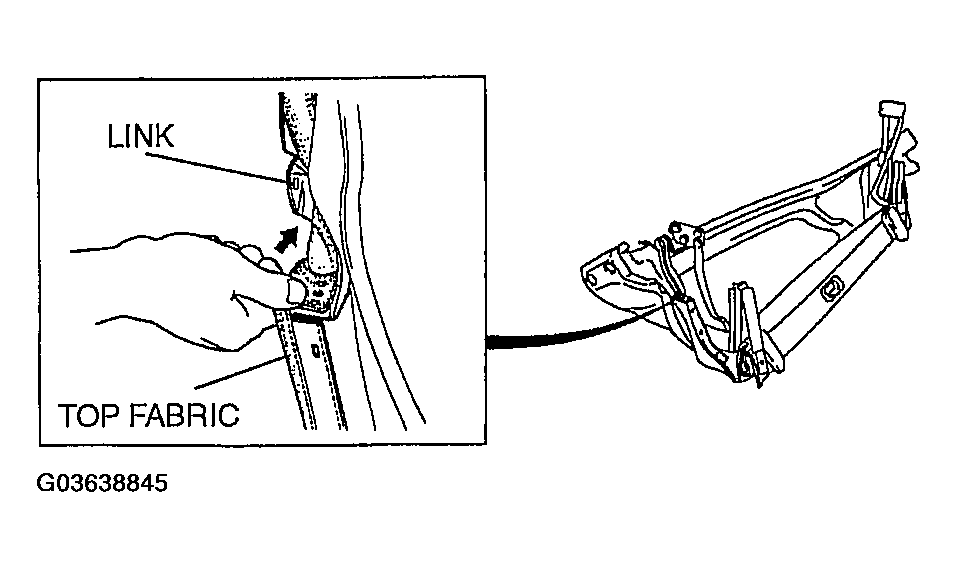

Install the top fabric to the link.
Unfold the convertible top.

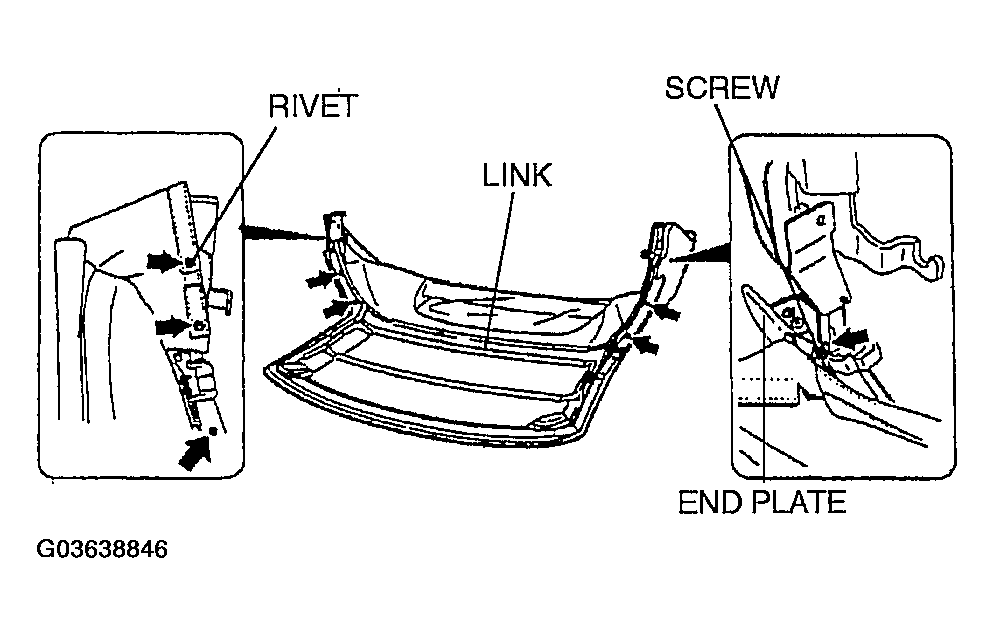

Install the end plates to the link.

Fig 2: Installing Top Fabric To Link
Courtesy of MAZDA MOTORS CORP.
Rivet the top fabric to the link.

Fig 3: Riveting Top Fabric To Link
Courtesy of MAZDA MOTORS CORP.
