End Plate Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rivets from the link using a drill.

    Drill size

    1. 4.0 mm diameter {0.16 in diameter}
  2. Remove the screws and remove the end plates from the link.

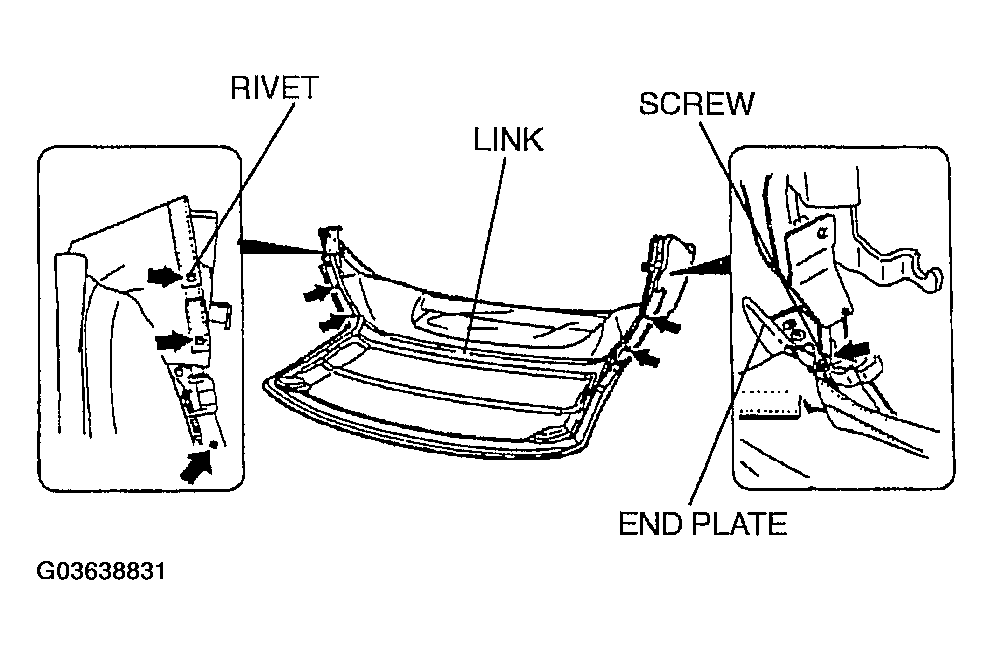

    Fig 1: Disassembling End Plate
    G03638831Courtesy of MAZDA MOTORS CORP.
