AEROBOARD Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the aeroboard. (See AEROBOARD REMOVAL/INSTALLATION .)
  3. Remove the aeroboard speaker. (See AEROBOARD SPEAKER REMOVAL/INSTALLATION .)
  4. Remove the aeroboard speaker amplifier. (See AEROBOARD SPEAKER AMPLIFIER REMOVAL/INSTALLATION .)
  5. Disassemble in the order indicated in the table.

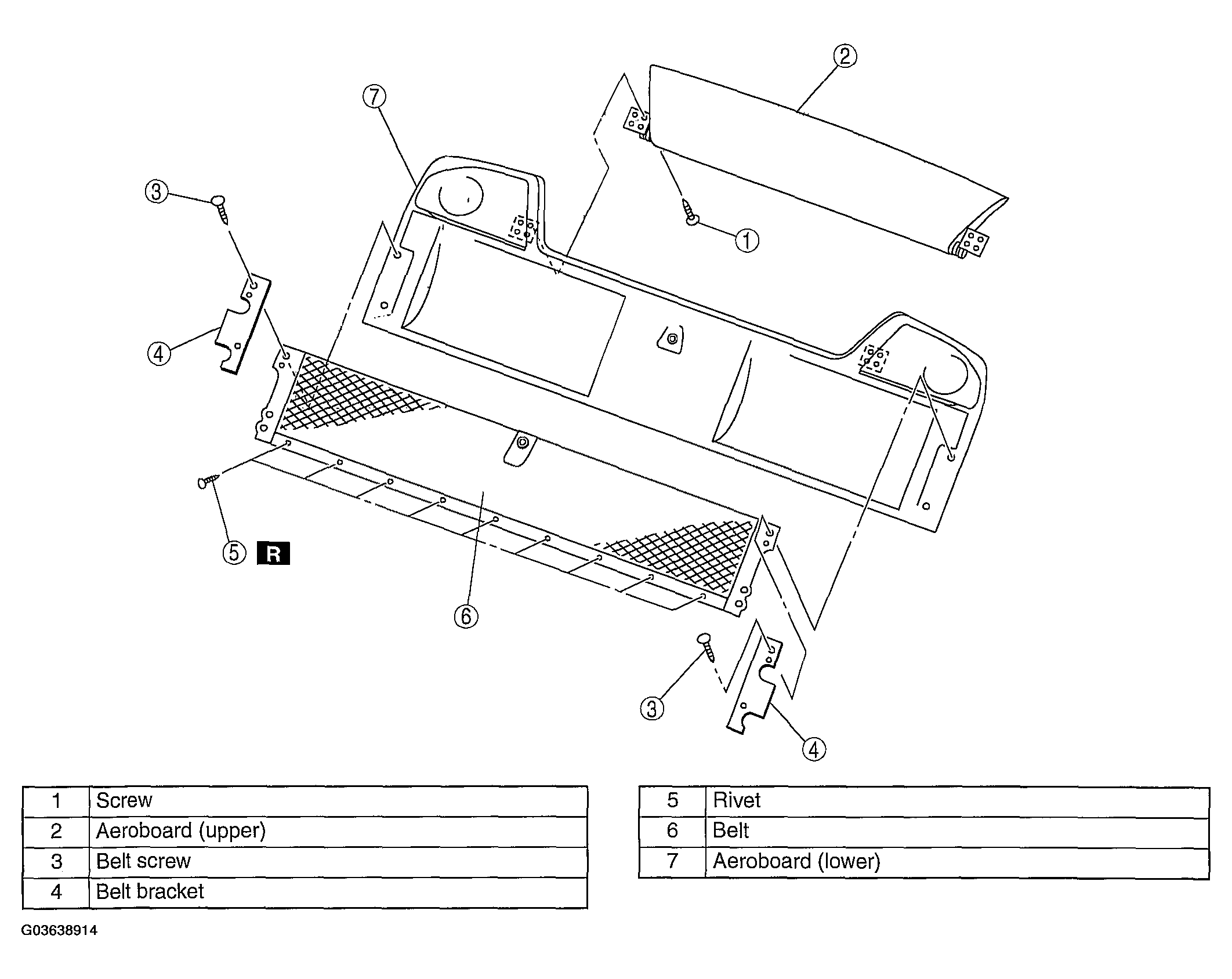

    Fig 1: Disassembling Aeroboard
    G03638914Courtesy of MAZDA MOTORS CORP.
  6. Assemble in the reverse order of disassembly.
