Console Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the table.

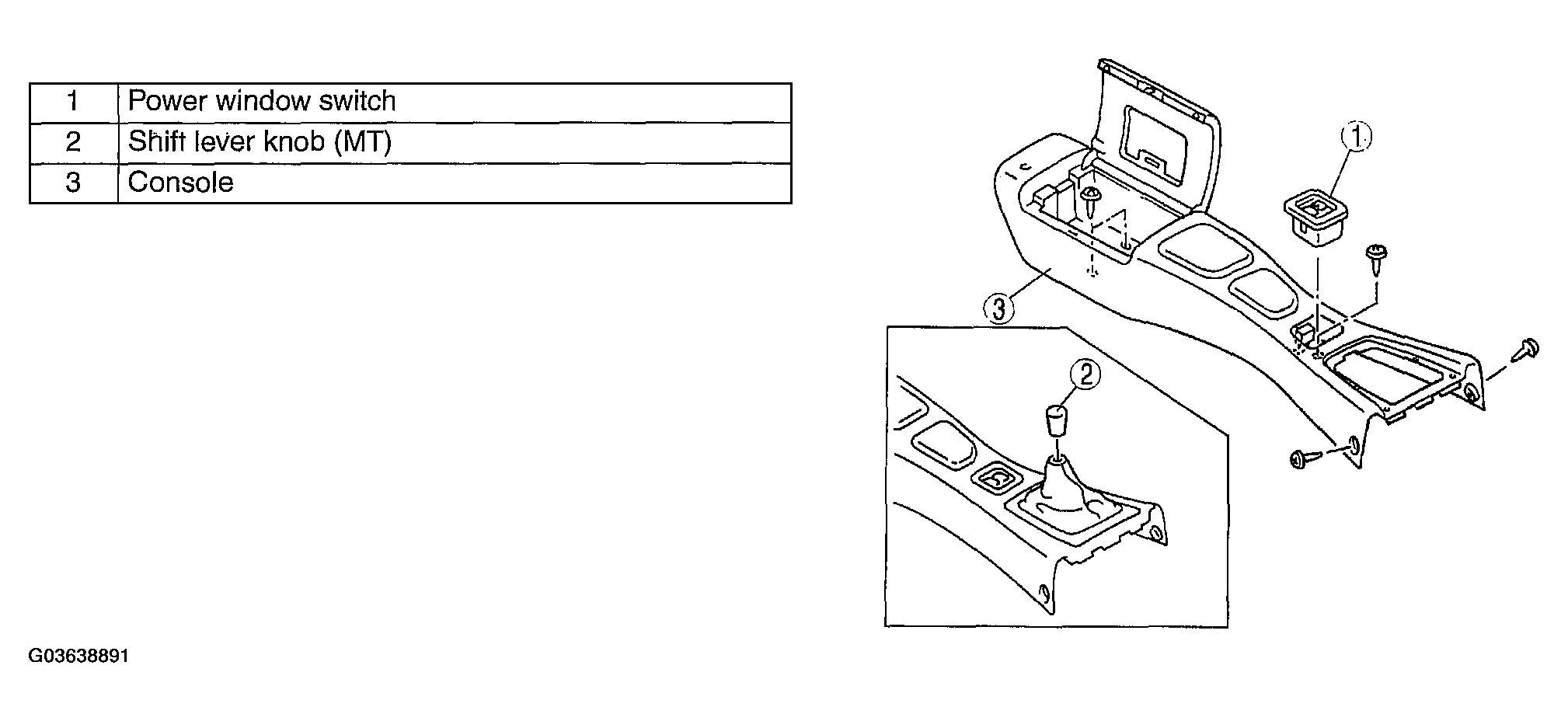

Fig 1: Removing Console
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
