Trunk End Trim Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Pull the internal trunk lid release handle to disengage it from the holder.
Remove in the order indicated in the table.

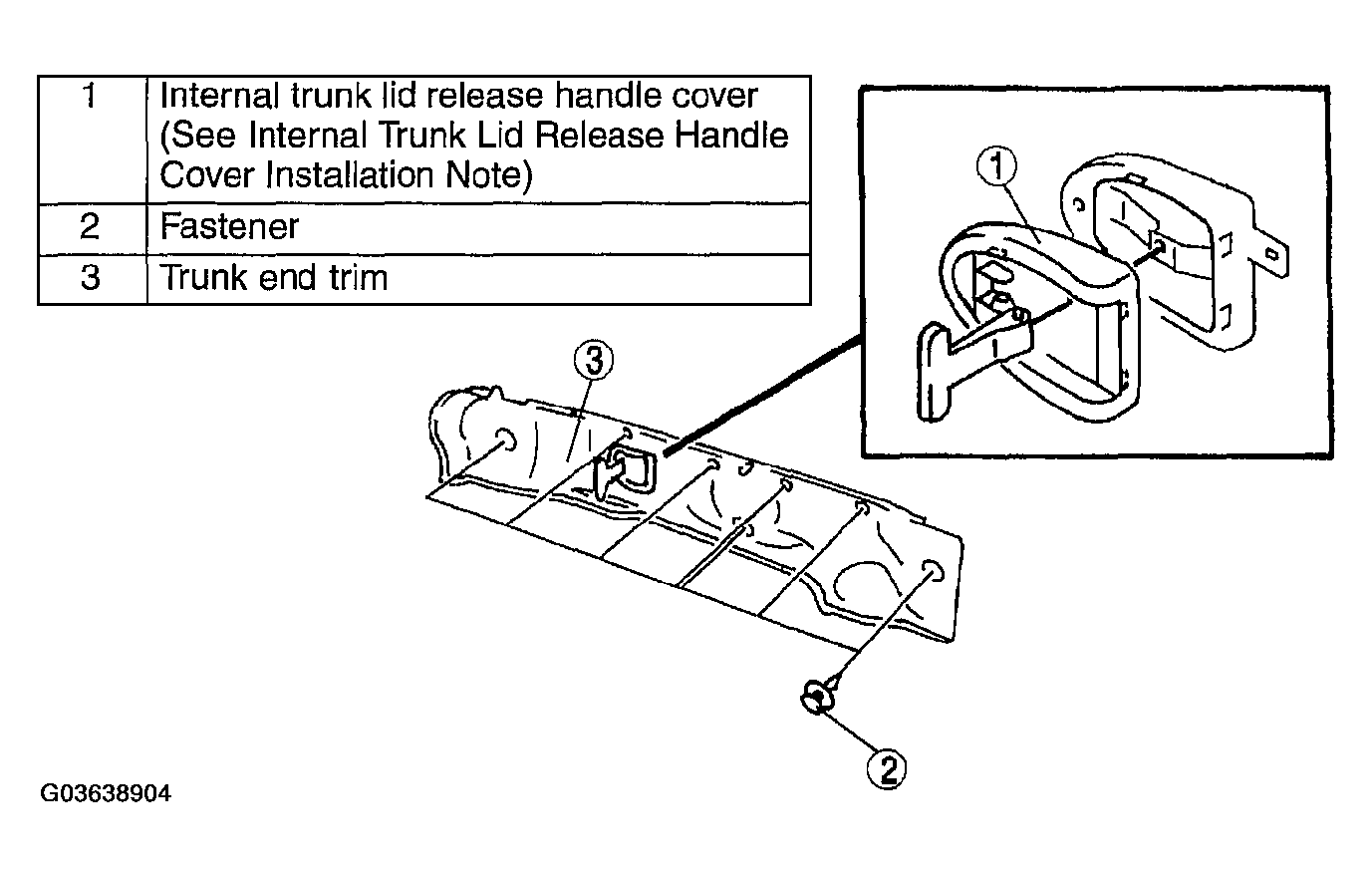

Fig 1: Removing Trunk End Trim
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
