Section 566 (Lighting System)
›
High-Mount Brake Light Removal/Installation
›
Notes
High-Mount Brake Light Removal/Installation: Notes
WARNING:
This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
Disconnect the negative battery cable.
Remove in the order indicated in the table.

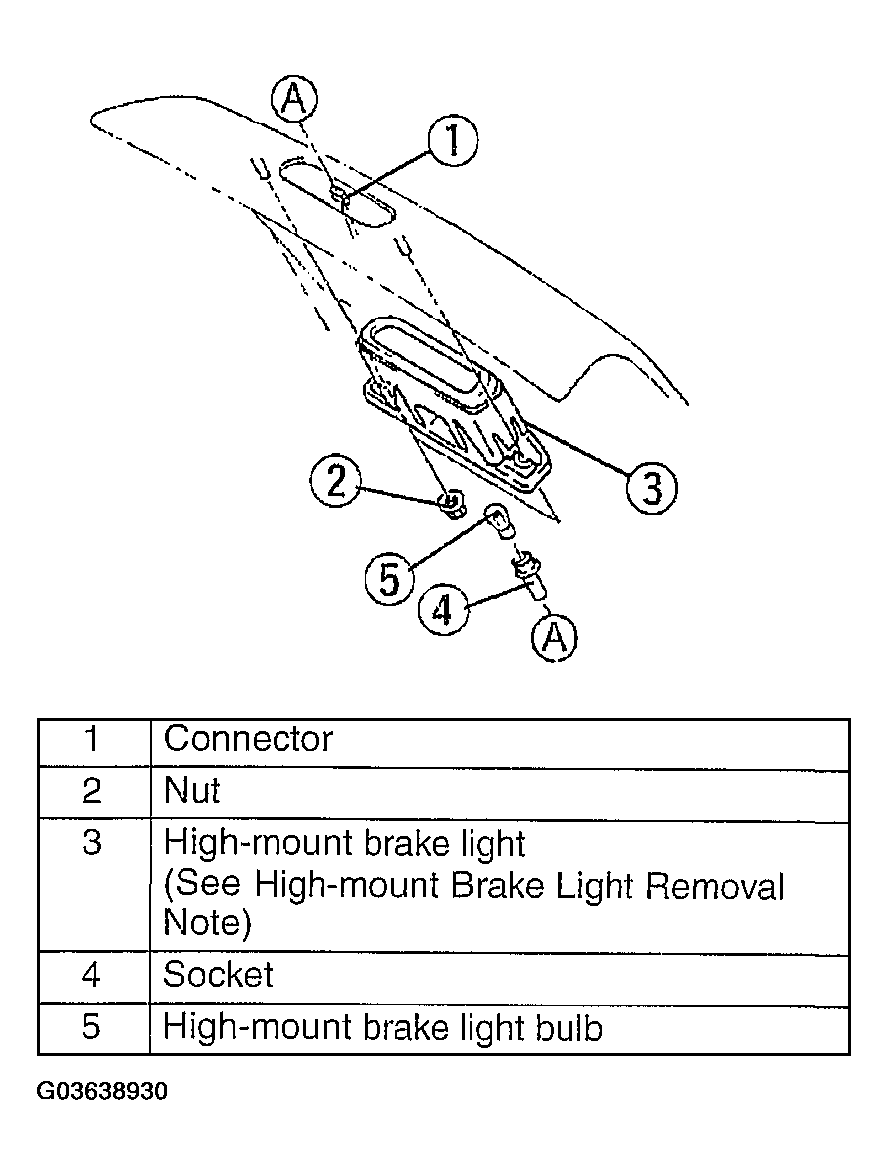

Fig 1: Removing High-Mount Brake Light
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
