AEROBOARD Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing or installing an aeroboard speaker, touching the radio cone paper could cause poor sound quality. When removing or installing an aeroboard speaker, hold the speaker bracket and handle with care.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

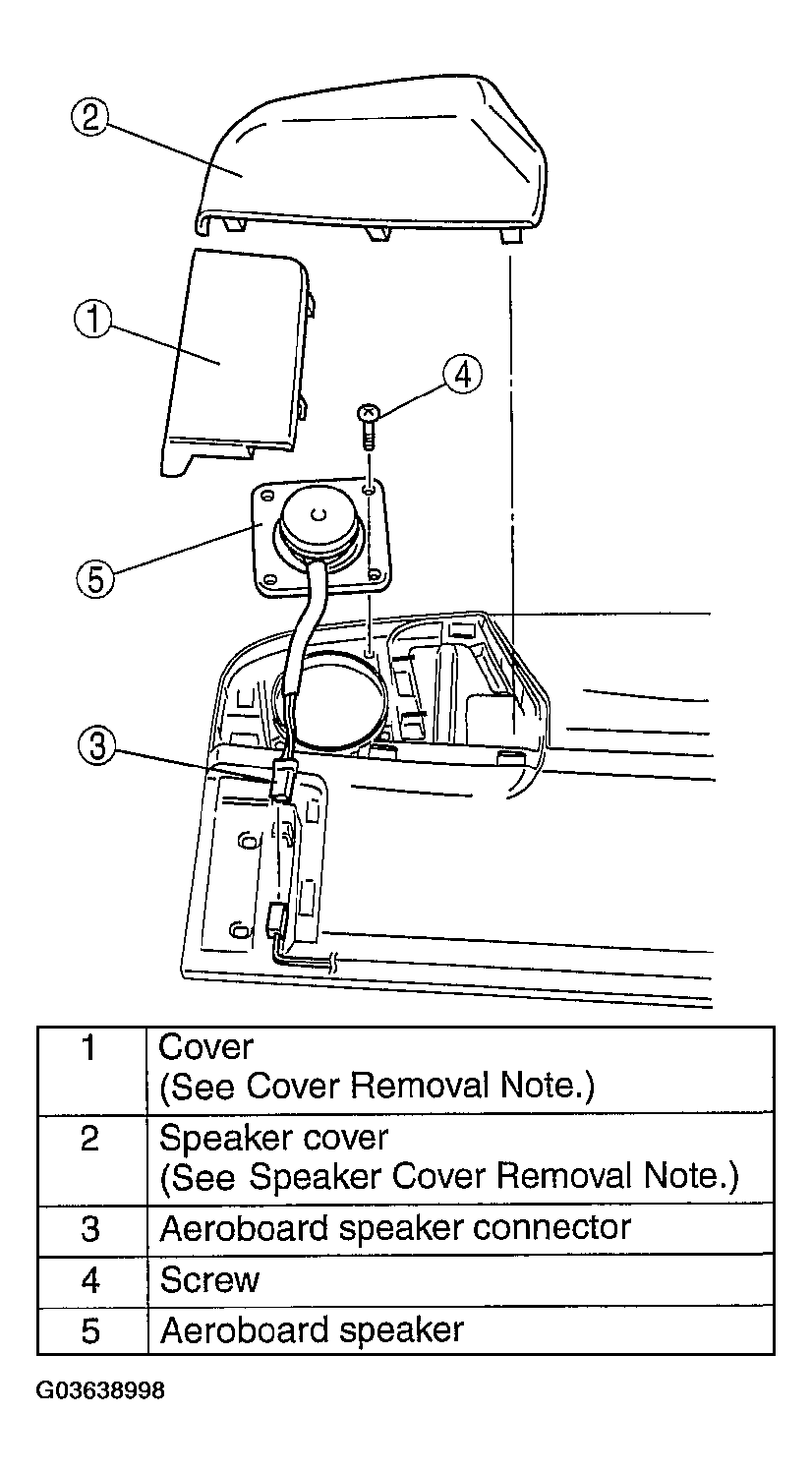

    Fig 1: Removing Aeroboard Speaker
    G03638998Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
