Instrument Cluster Disassembly/Assembly
WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If the instrument cluster is dropped or damaged, the system will not work properly and it may be the cause of trouble or malfunction.

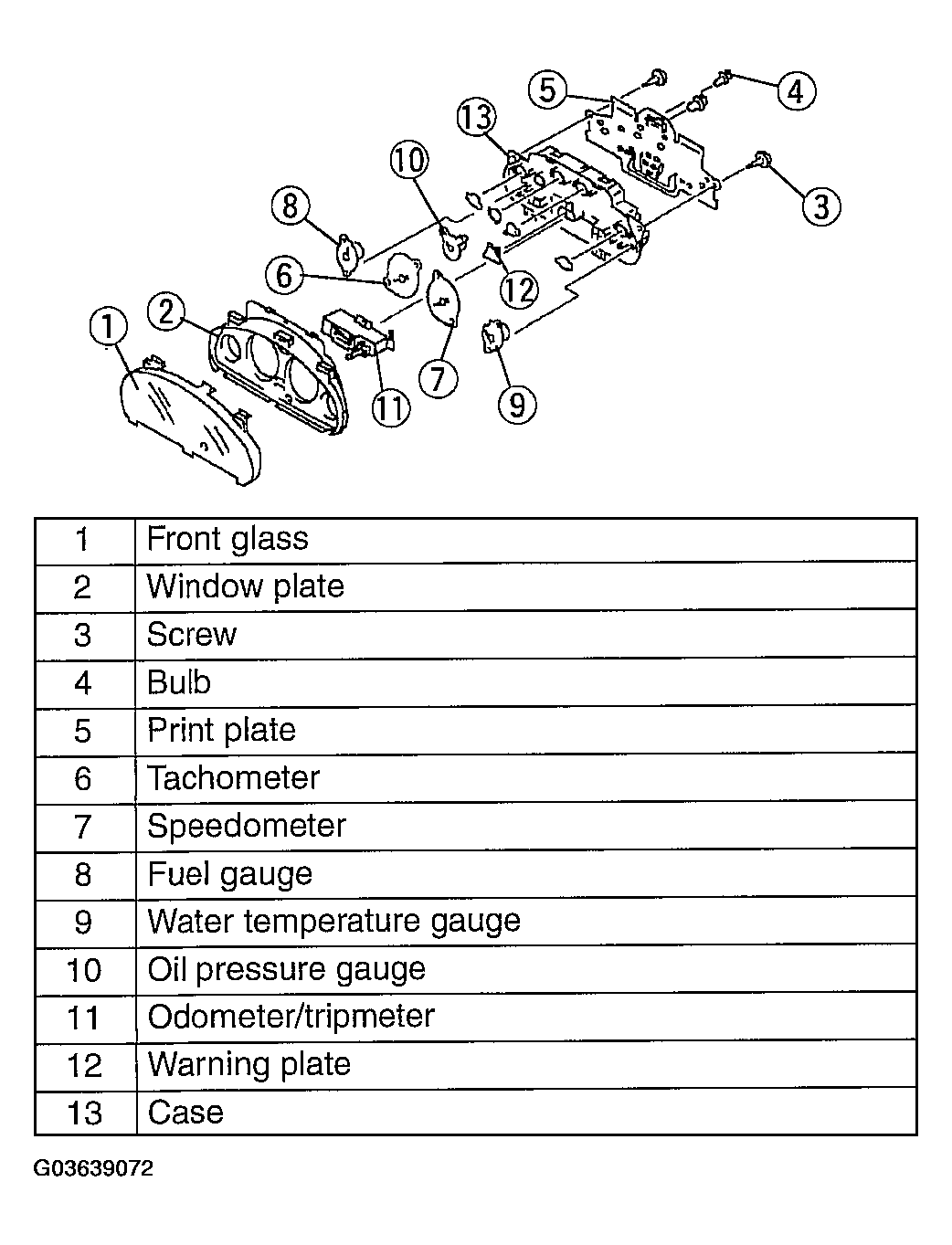

- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.
