Removal and Installation
WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the audio unit.

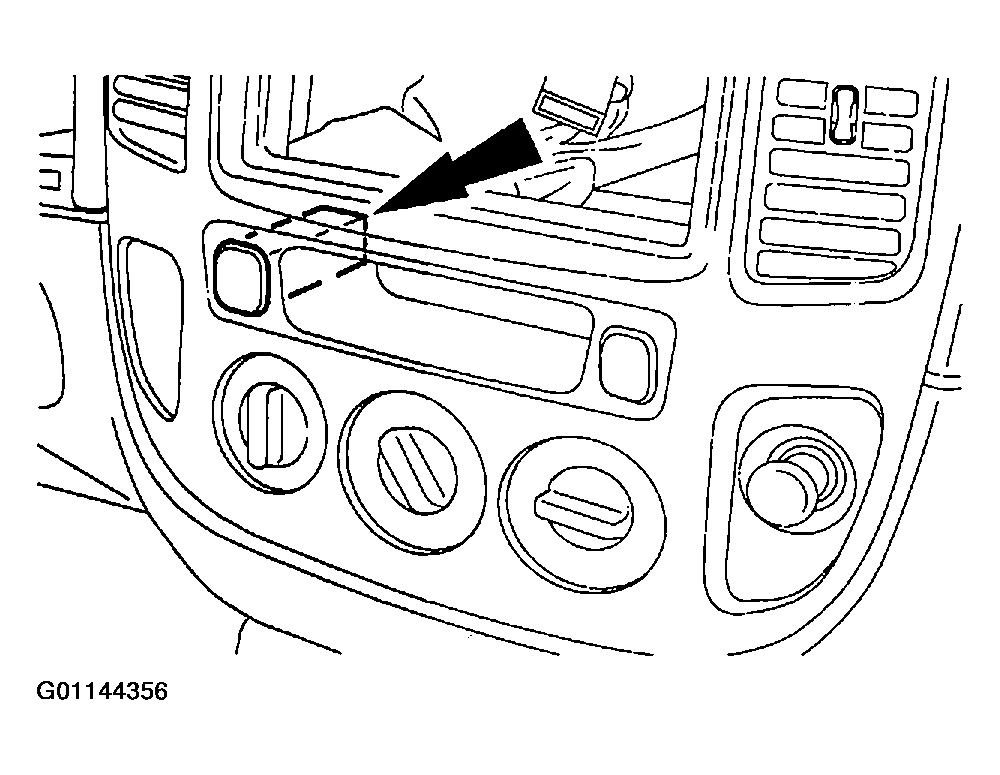

Courtesy of MAZDA MOTORS CORP.
- Push outward on the rear window defrost switch to remove it from the instrument panel center finish panel.
- Disconnect the electrical connector.
- To install, reverse the removal procedure.
