Inspection and Verification

WARNING: This page is about a different car, the 2002 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the system.
  2. Visually inspect for obvious signs of mechanical and electrical damage.

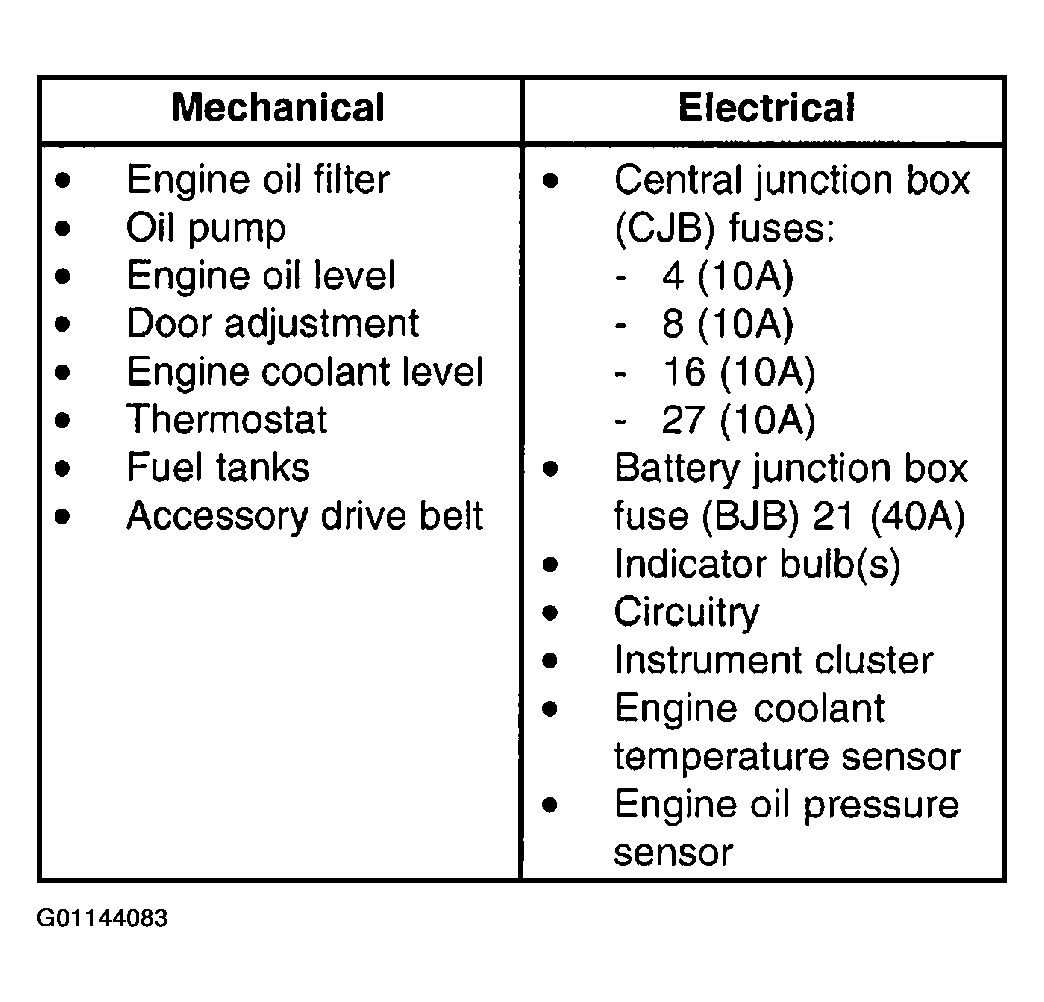

    Visual Inspection Chart Instrument Cluster

    Fig 1: Visual Inspection Chart Instrument Cluster
    G01144083Courtesy of MAZDA MOTORS CORP.
  3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
  4. If the concern remains after the inspection, connect the WDS or equivalent Tester to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the WDS or equivalent Tester menu. If the WDS or equivalent Tester does not communicate with the vehicle:
    1. Check that the program card is correctly installed.
    2. Check the connections to the vehicle.
    3. Check the ignition switch position.
  5. If the WDS or equivalent Tester still does not power up, refer to the WDS or equivalent Tester manual.
  6. Carry out the DATA LINK DIAGNOSTICS test. If the WDS or equivalent Tester responds with:
    1. CKT914, CKT915 OR CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to MODULE COMMUNICATIONS NETWORK article.
    2. NO RESP/NOT EQUIP for the instrument cluster (IC), go to PINPOINT TEST 1: NO COMMUNICATION WITH THE INSTRUMENT CLUSTER  , for the generic electronic module (GEM), refer to PINPOINT TEST 1: NO COMMUNICATION WITH THE GEM , or for powertrain control module (PCM) refer to COMMUNICATION ERRORMODULE COMMUNICATIONS NETWORK article.
    3. SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out the self test diagnostics for the instrument cluster or the GEM.
  7. If the DTCs retrieved are related to the concern, go to the Instrument Cluster Diagnostic Trouble Code (DTC) Index or the GEM diagnostic trouble code (DTC) index to continue diagnostics.
  8. If no DTCs are related to the concern are retrieved, proceed to the Troubleshooting Index to continue diagnostics.
