Cruise Control Switch Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. See AIR BAG RESTRAINT SYSTEMS .
  3. Remove the cruise control switch bracket.
  4. Remove in the order indicated in the illustration.

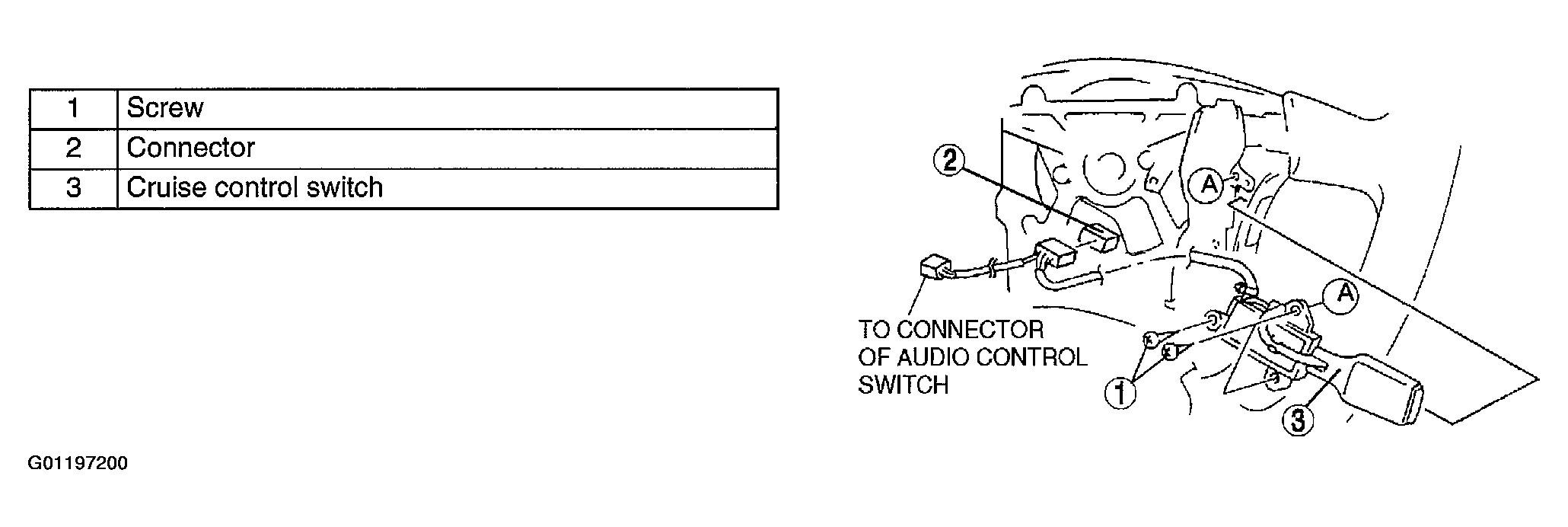

    Fig 1: Removing Cruise Control Switch
    G01197200Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
