Engine Front Cover Installation Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Apply a 6 mm {0.24 in} dot of silicone sealant at the indicated location.

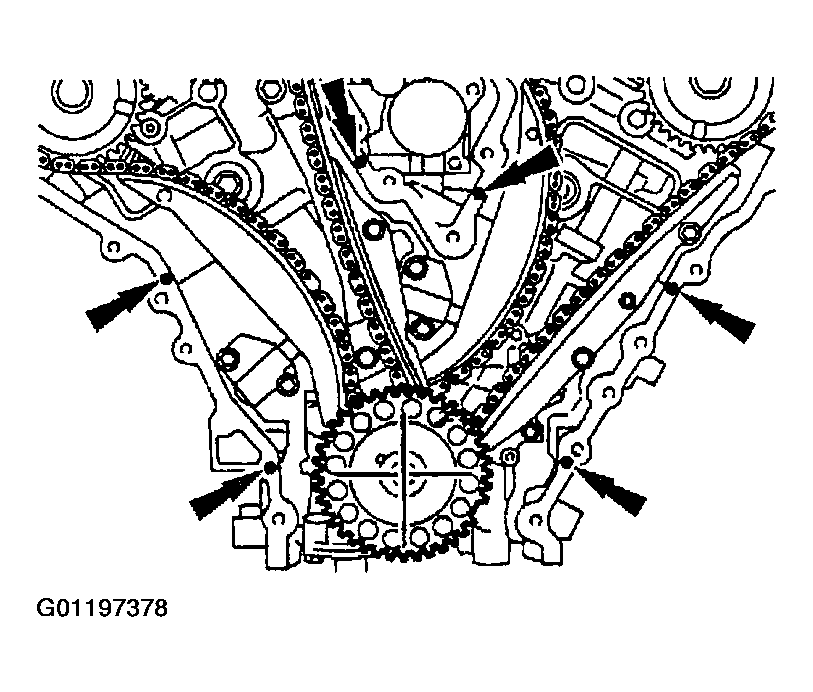

Fig 1: Applying Silicone Sealant For Engine Front Cover Installation
Courtesy of MAZDA MOTORS CORP.
Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.

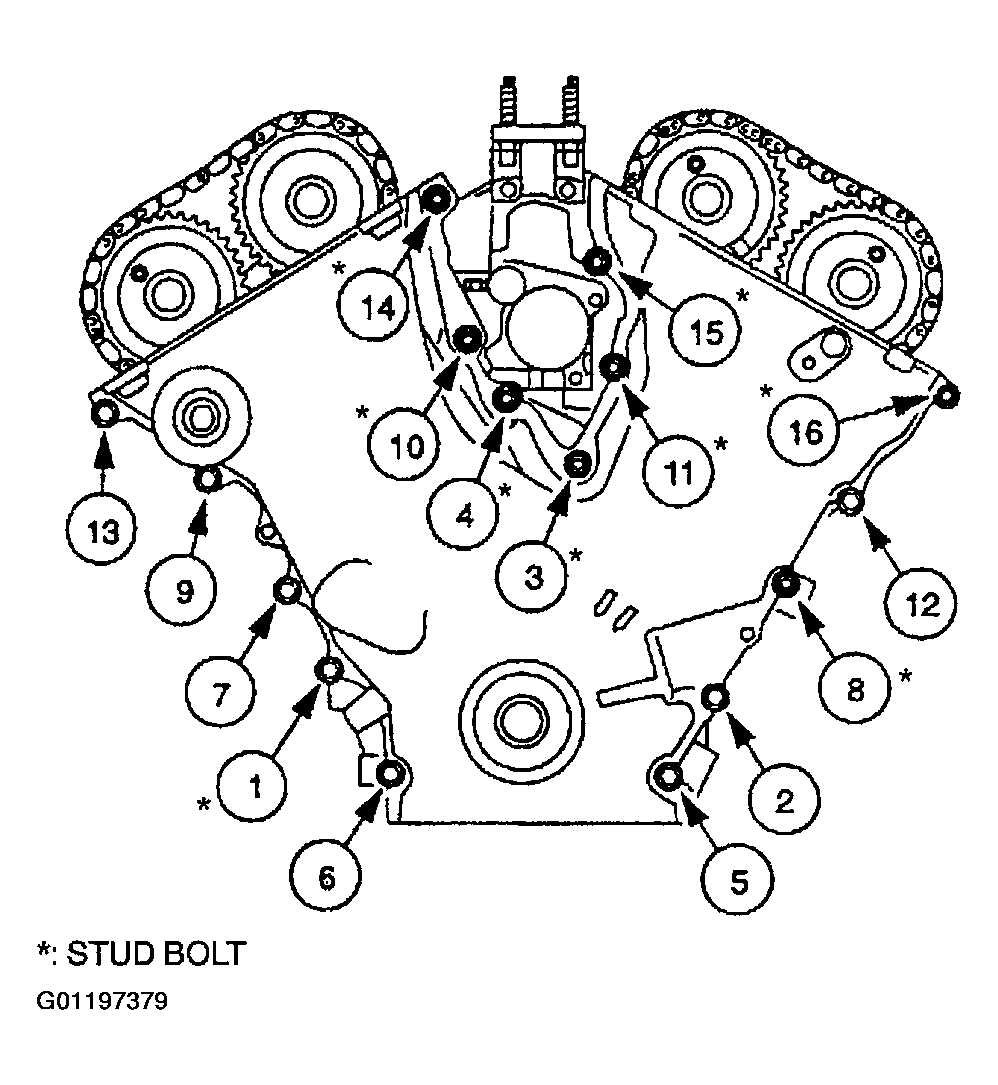

Fig 2: Engine Front Cover Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
