Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine front cover bolts and studs in the order shown.

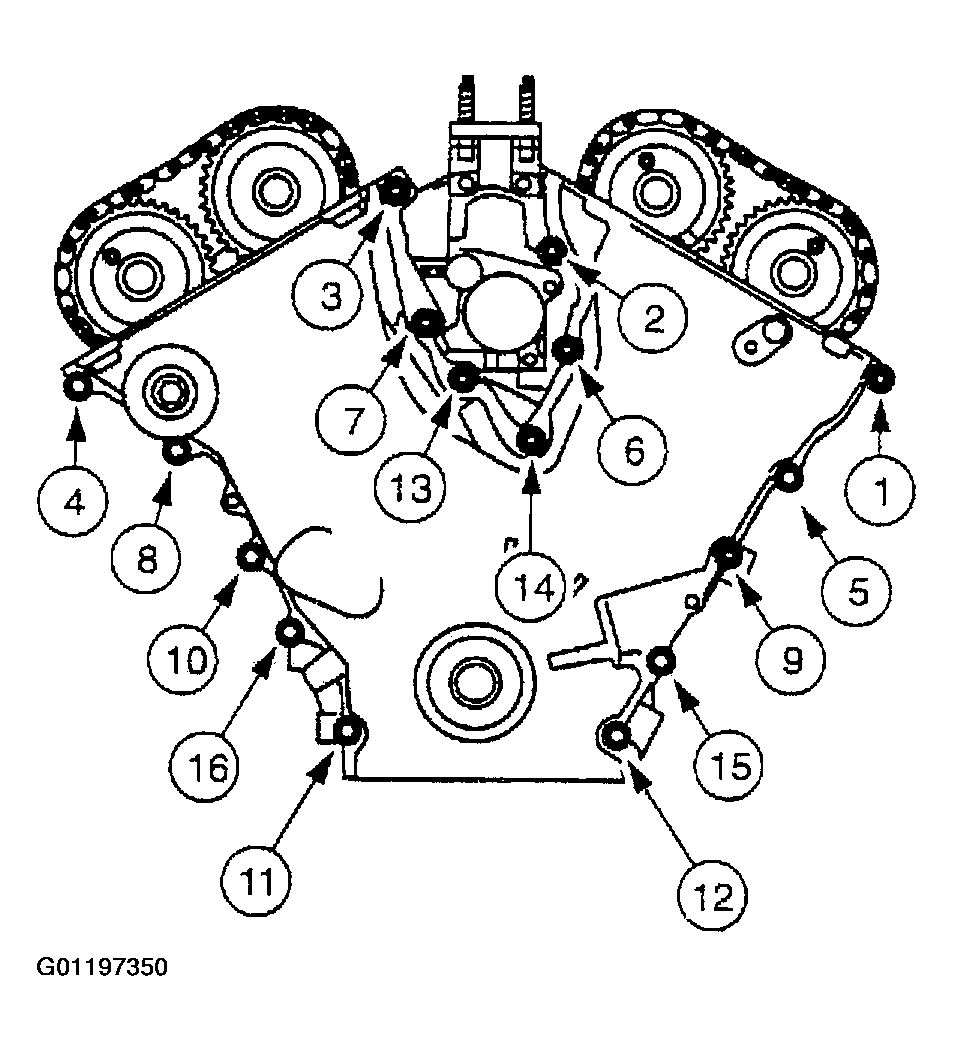

Fig 1: Engine Front Cover Bolt Removal Sequence
Courtesy of MAZDA MOTORS CORP.
