Differential Assembly: Reassembly

Install speedometer drive gear (if removed) and bearings. Install thrust washers, pinion gears and side gears. Install pinion shaft. Install and crimp roll pin.

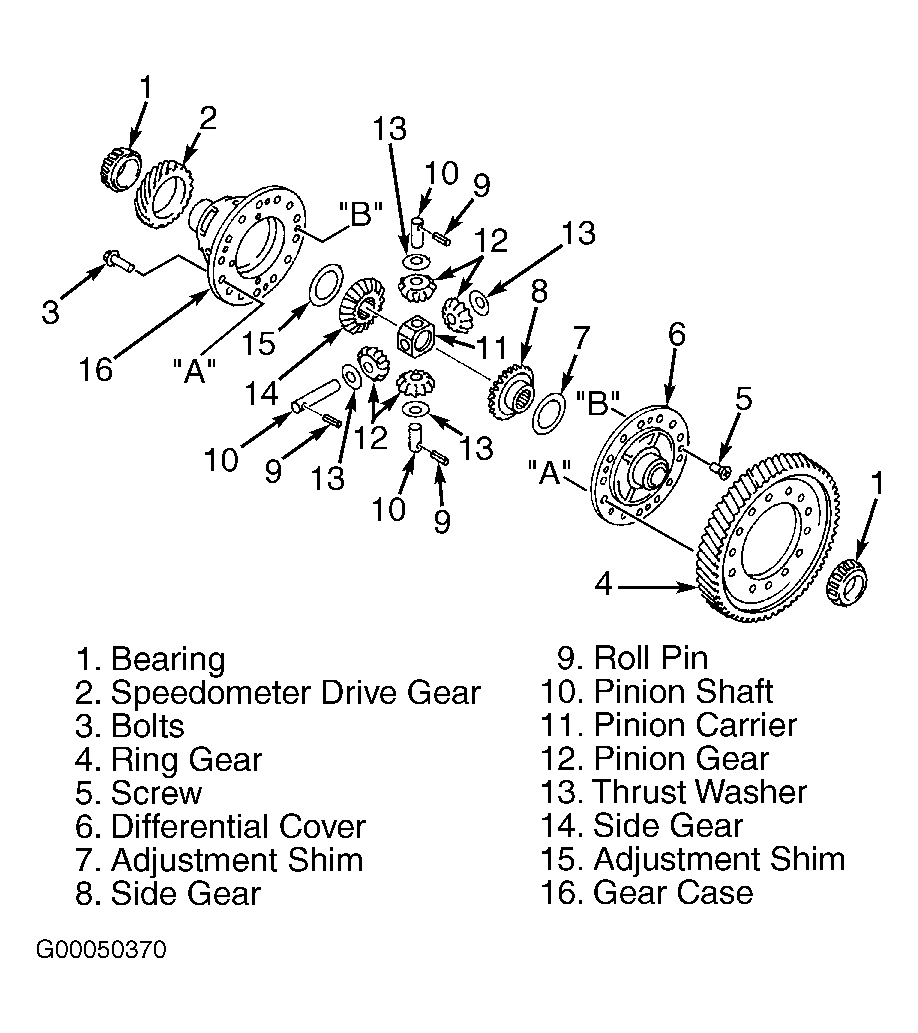

Fig 1: Exploded View Of Differential Assembly
G00050370Courtesy of MAZDA MOTORS CORP.
