Disassembly & Reassembly

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the illustration. See Fig 1.
NOTE: Place a piece of wood in the caliper, then blow compressed air through the bleeder hole to force the piston out of the caliper.
Assemble in the reverse order of disassembly. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS .

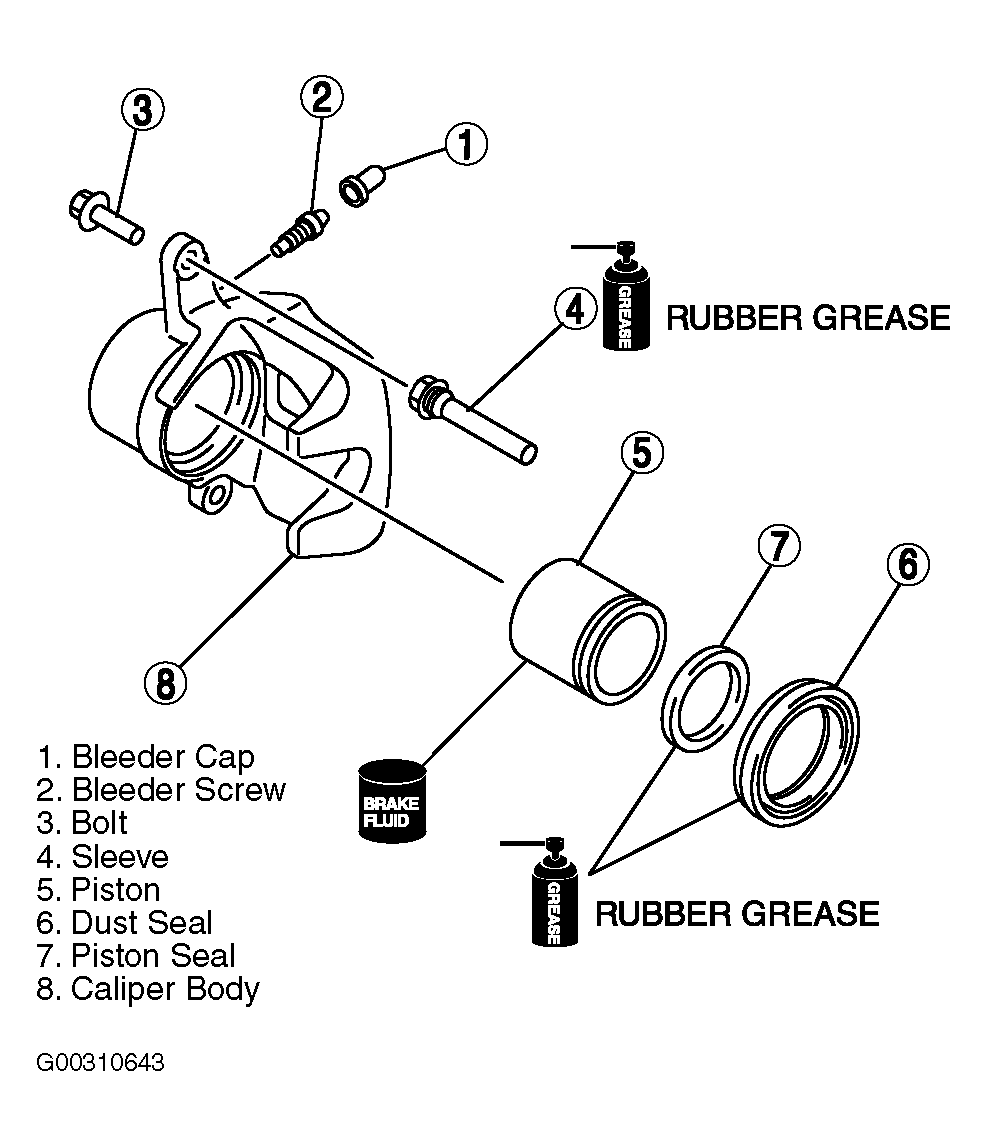

Fig 1: Disassembling Front Caliper

Courtesy of MAZDA MOTORS CORP.
