Air Intake Actuator Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove in the order indicated in the illustration.

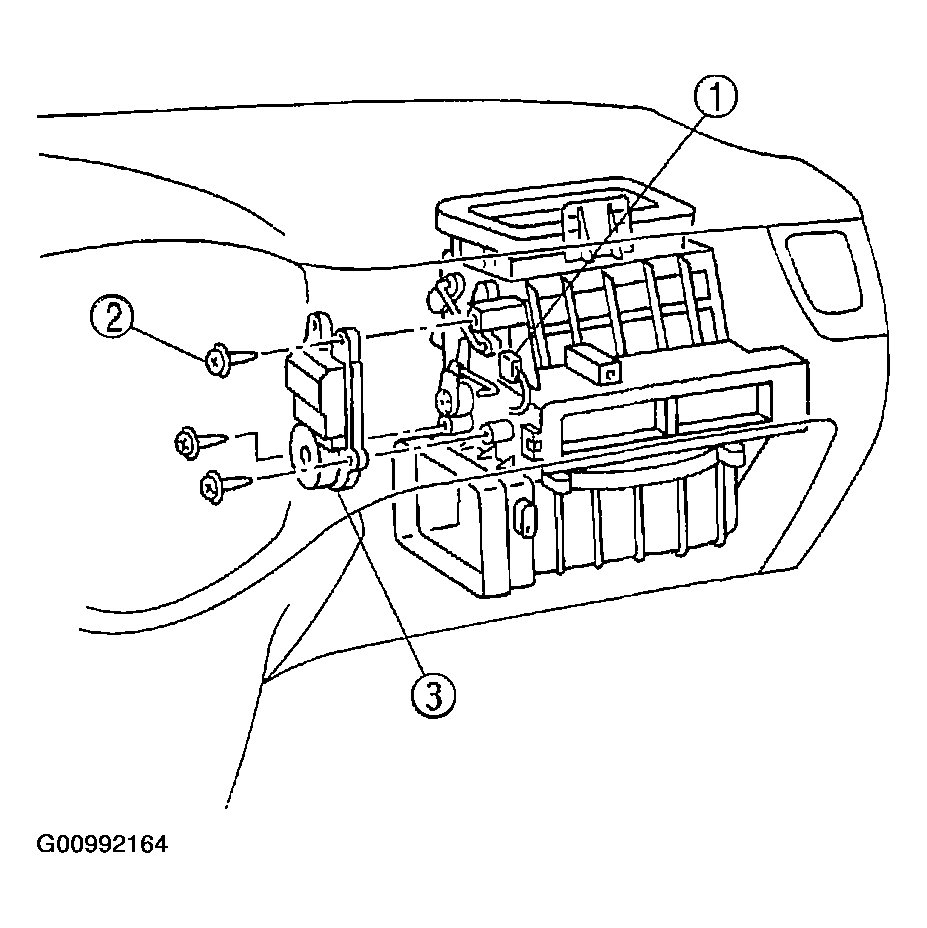

Fig 1: Removal Order Of Intake Air Actuator
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

Fig 2: Removing/Installing Air Intake Actuator
Courtesy of MAZDA MOTORS CORP.
