Air Mix Wire
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

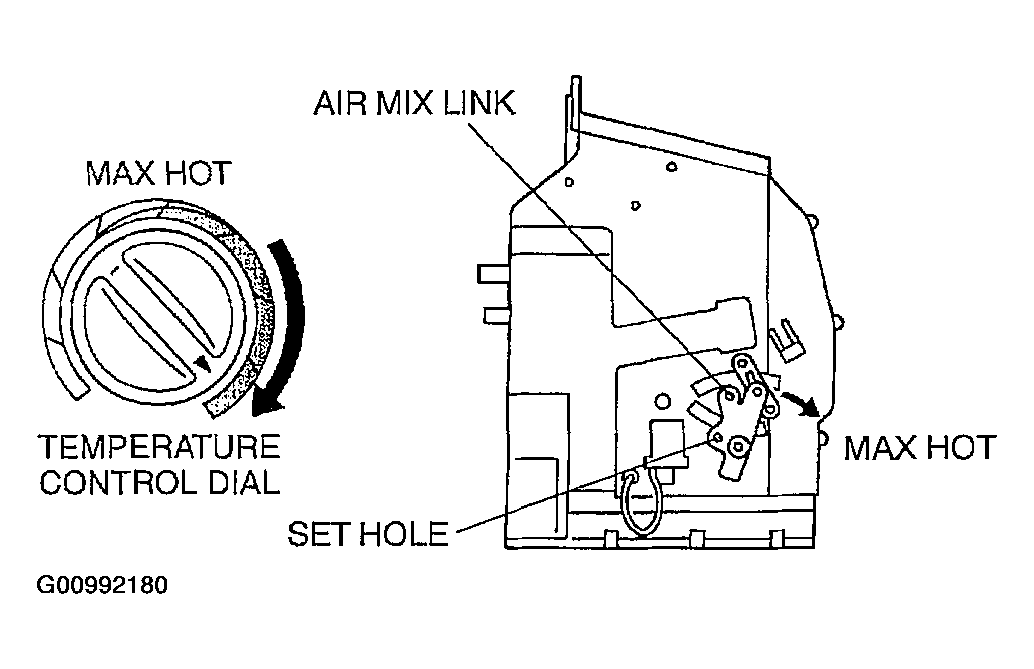

- Set the temperature control dial at MAX HOT.
- Set the air mix link to MAX HOT in the direction shown by the arrow and insert a screwdriver at the set hole.
- Connect the air mix wire to air mix link.
- Clamp the air mix wire to wire clamp.
- Verify that the temperature control dial moves its full stroke.
