Ambient Temperature Sensor Inspection
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Measure the temperature around the ambient temperature sensor.
- Measure the resistance between terminals of the ambient temperature sensor.

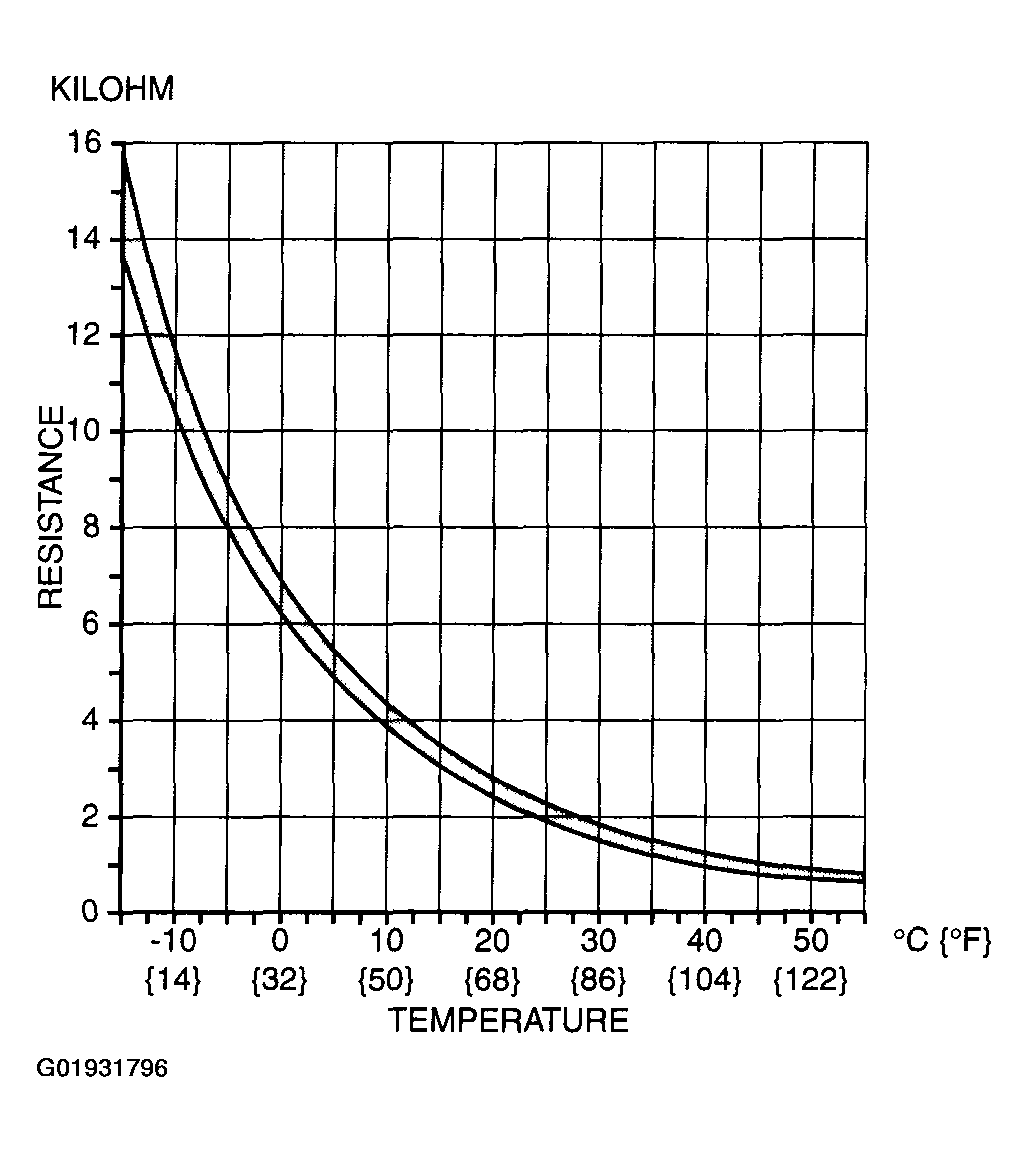

- If the resistance is not as shown in Fig 1 , replace the ambient temperature sensor.
