Magnetic Clutch Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in Fig 1 .

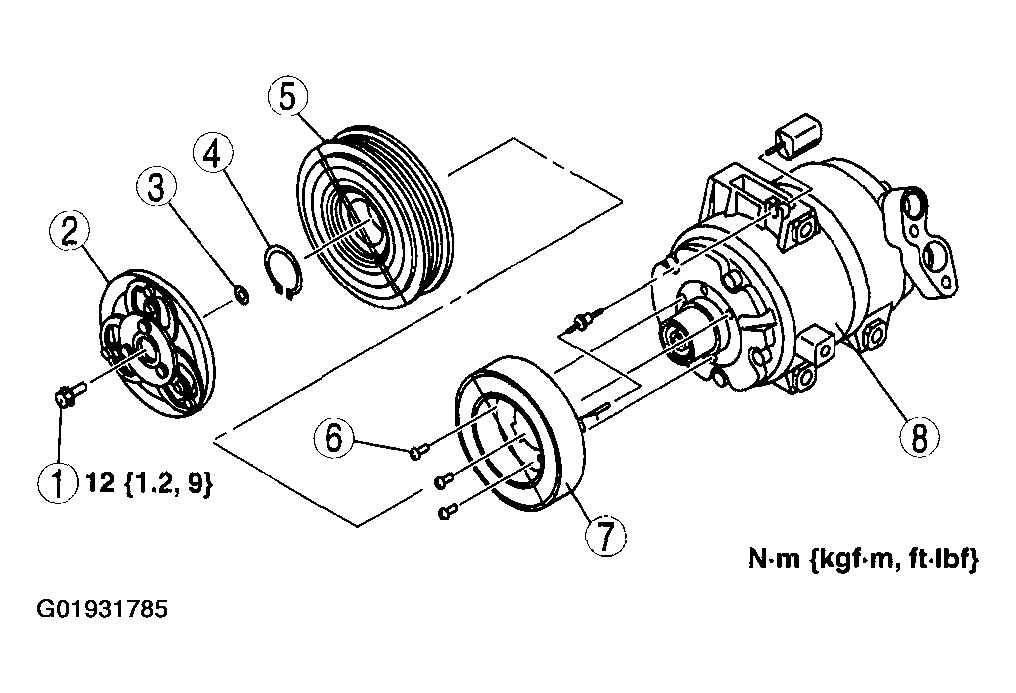

Fig 1: Disassembling Magnetic Clutch (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

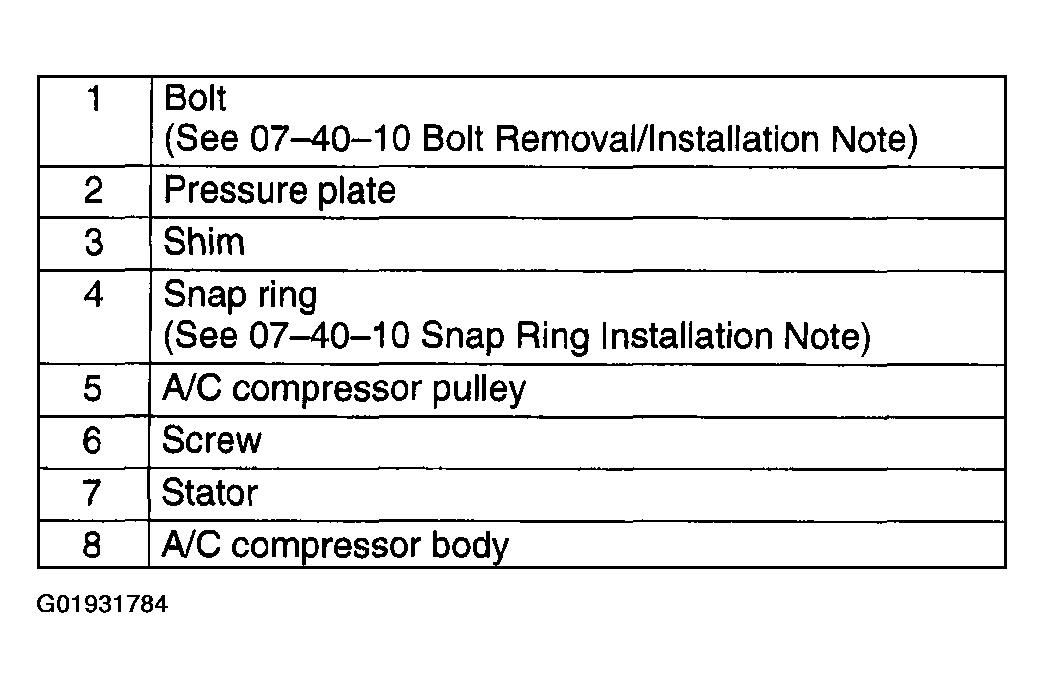

Fig 2: Disassembling Magnetic Clutch (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
