Evaporator Temperature Sensor Assembly Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Assemble the evaporator temperature sensor as shown in the figure.

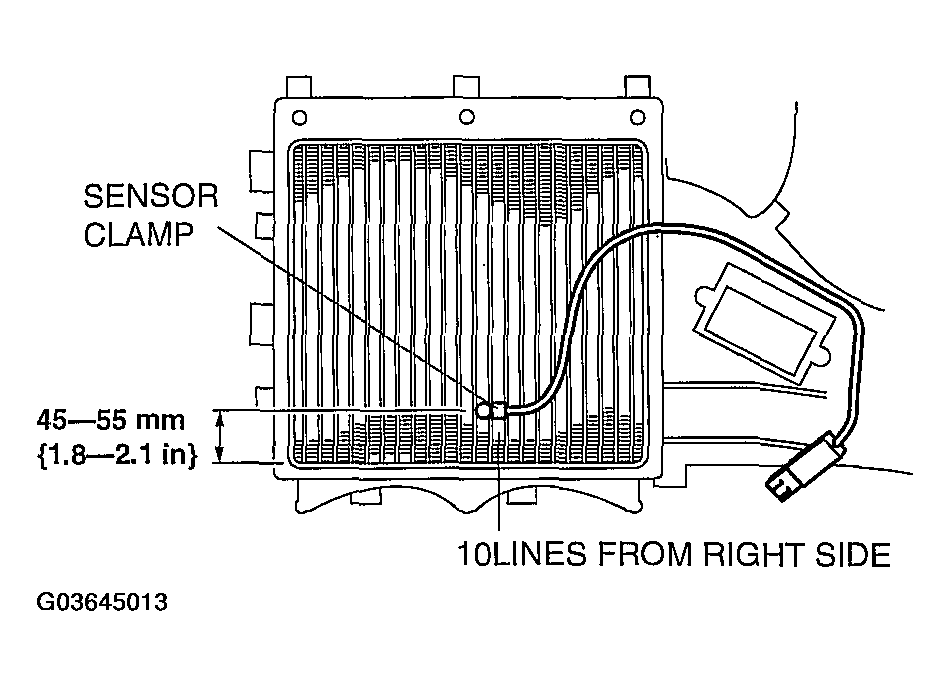

Fig 1: Installing Evaporator Temperature Sensor
Courtesy of MAZDA MOTORS CORP.
