Control Units
CONTROL UNITS

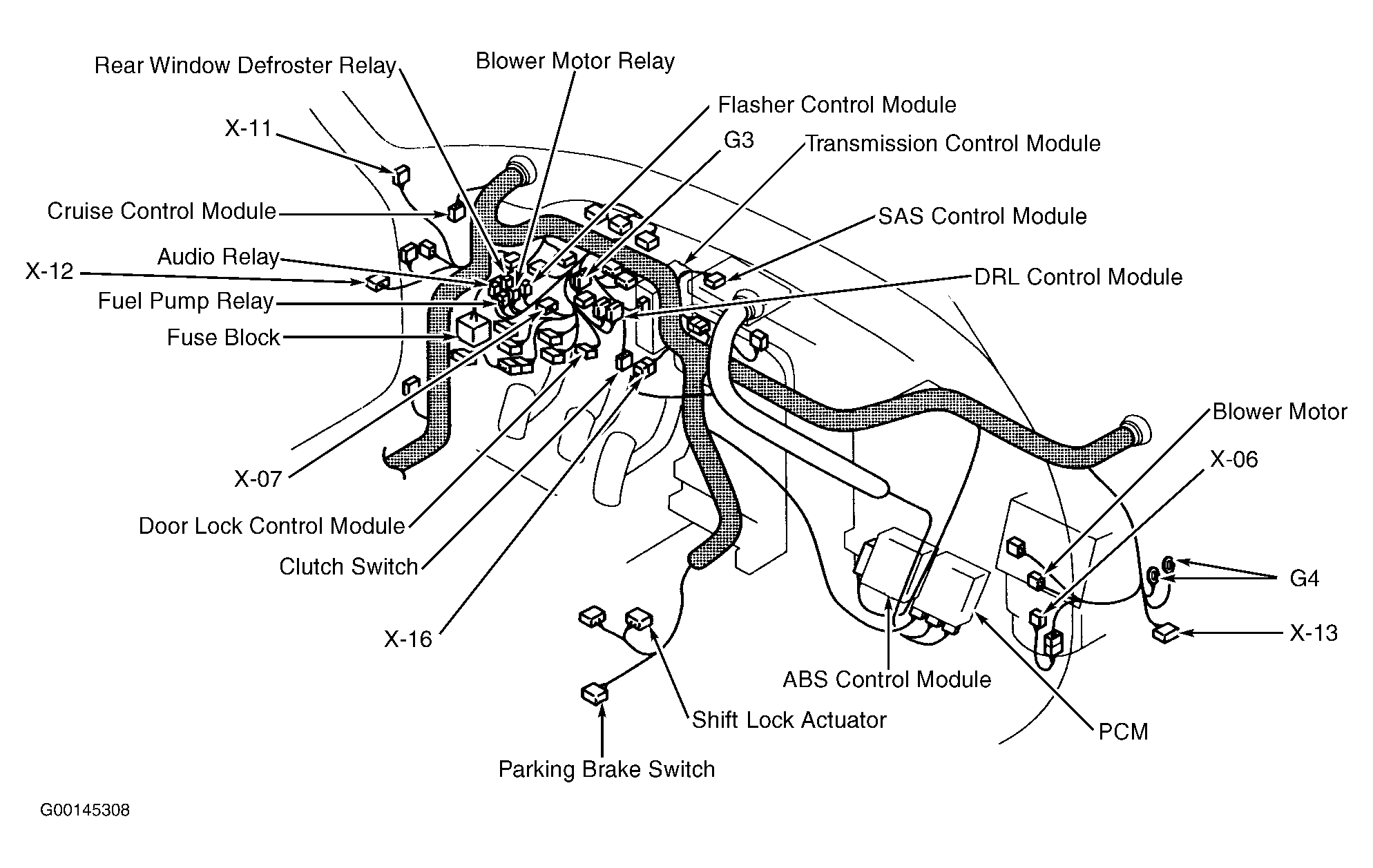

| Component | Component Location |
|---|---|
| ABS Control Module | Behind right side of dash. See Figure . |
| Cruise Control Module | Behind left side of dash. See Figure . |
| Door Lock Control Module | Behind left side of dash. See Figure . |
| DRL Control Module | Behind left side of dash. See Figure . |
| Flasher Control Module | Behind left side of dash. See Figure . |
| PCM | Behind right side of dash. See Figure . |
| SAS Control Module | Behind center of dash. See Figure . |
| Transmission Control Module | Behind left side of dash. See Figure . |
