Headlight Switch

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

If not as indicated, replace the light switch.

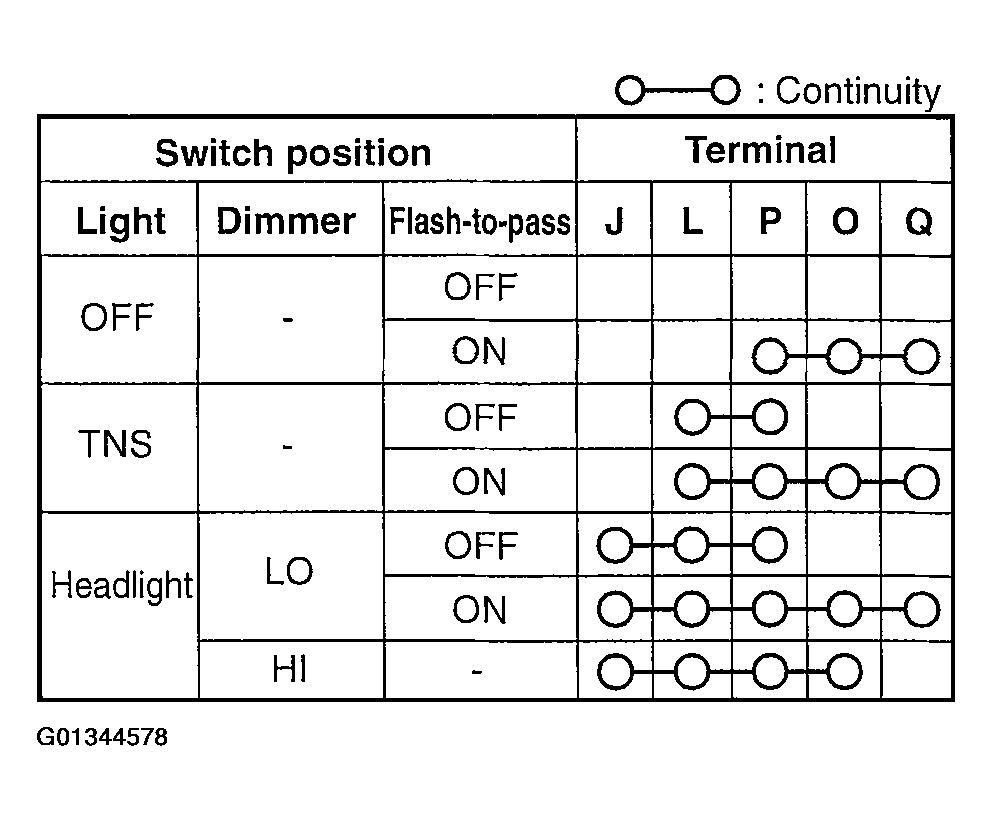

Fig 1: Inspecting Light Switch Continuity
Courtesy of MAZDA MOTORS CORP.

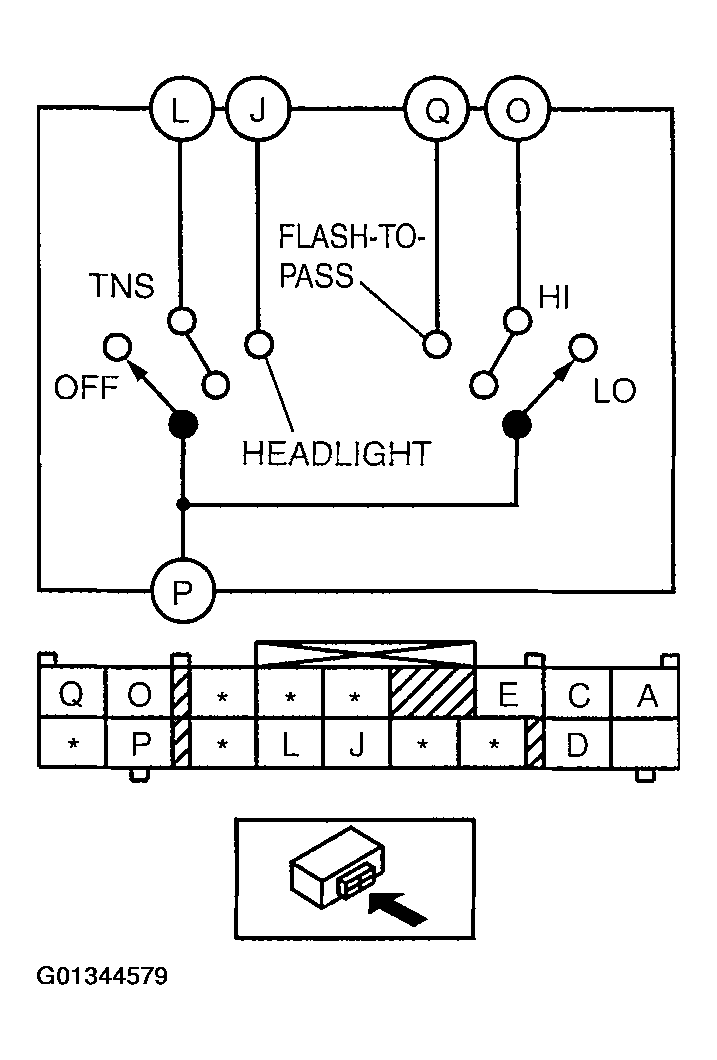

Fig 2: Identifying Light Switch Terminals
Courtesy of MAZDA MOTORS CORP.
