Mazda
›
2000
›
Protege ES, Standard
›
Repair and Diagnosis
›
Electrical
›
Fuses & Circuit Breakers
›
Identification
›
Instrument Panel Fuse Block
Instrument Panel Fuse Block
NOTE:
Instrument panel fuse block is located under driver's side of instrument panel. See
Fig 1
-
Fig 3
.

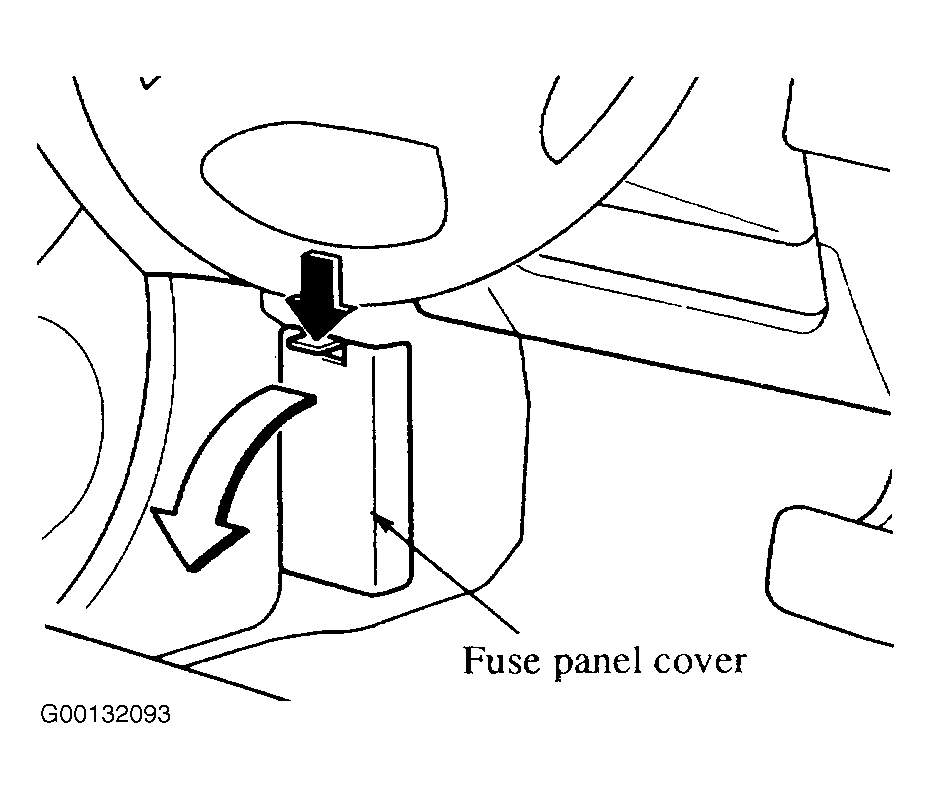

Fig 1: Locating Instrument Panel Fuse Block
Courtesy of MAZDA MOTORS CORP.

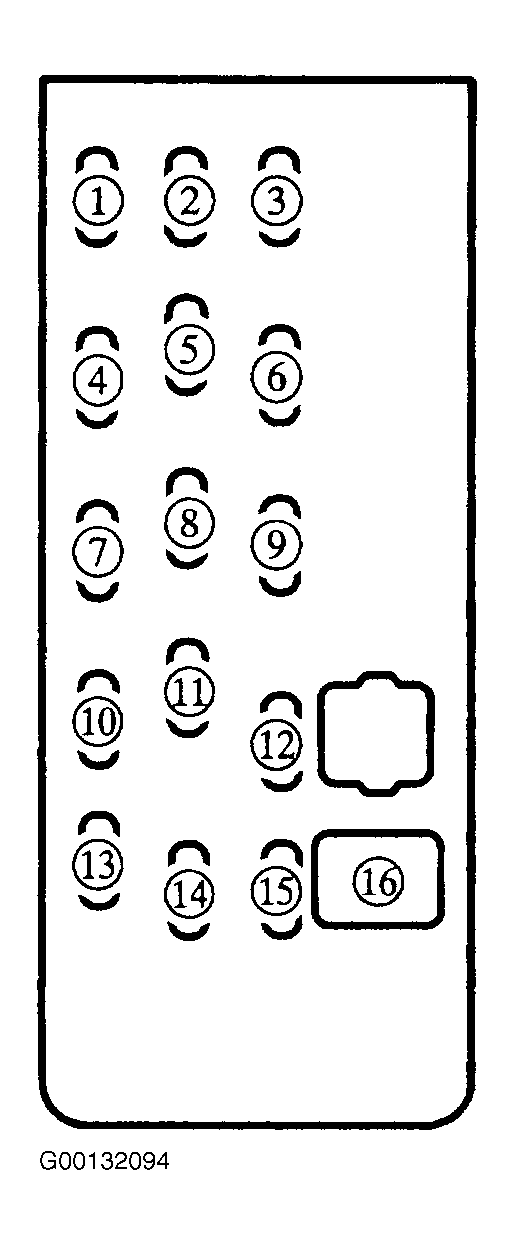

Fig 2: Identifying Instrument Panel Fuse Block Components
Courtesy of MAZDA MOTORS CORP.

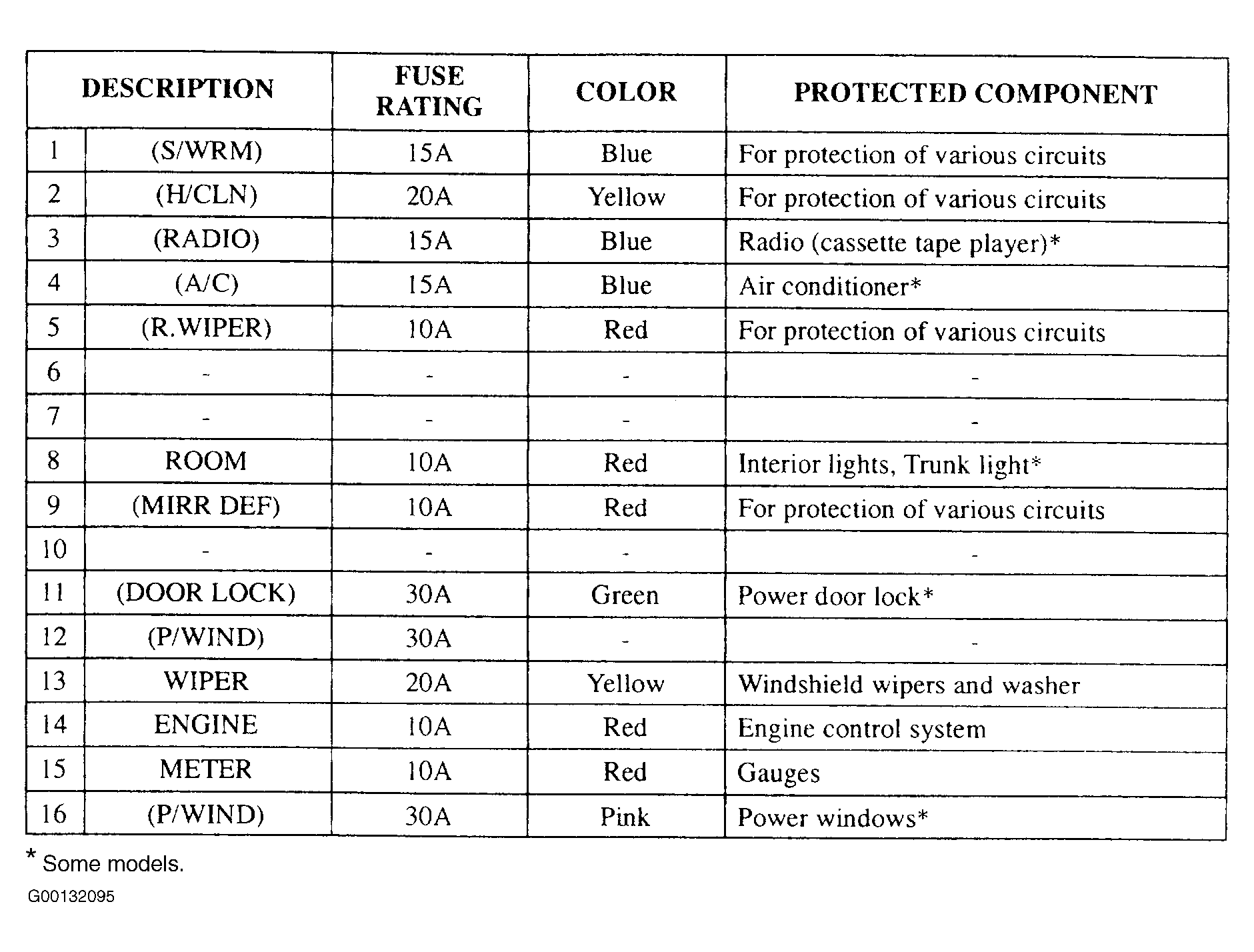

Fig 3: Instrument Panel Fuse Block Legend
Courtesy of MAZDA MOTORS CORP.
