Glove Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the socket, then remove the glove compartment light bulb.
  3. Install in the reverse order of removal.

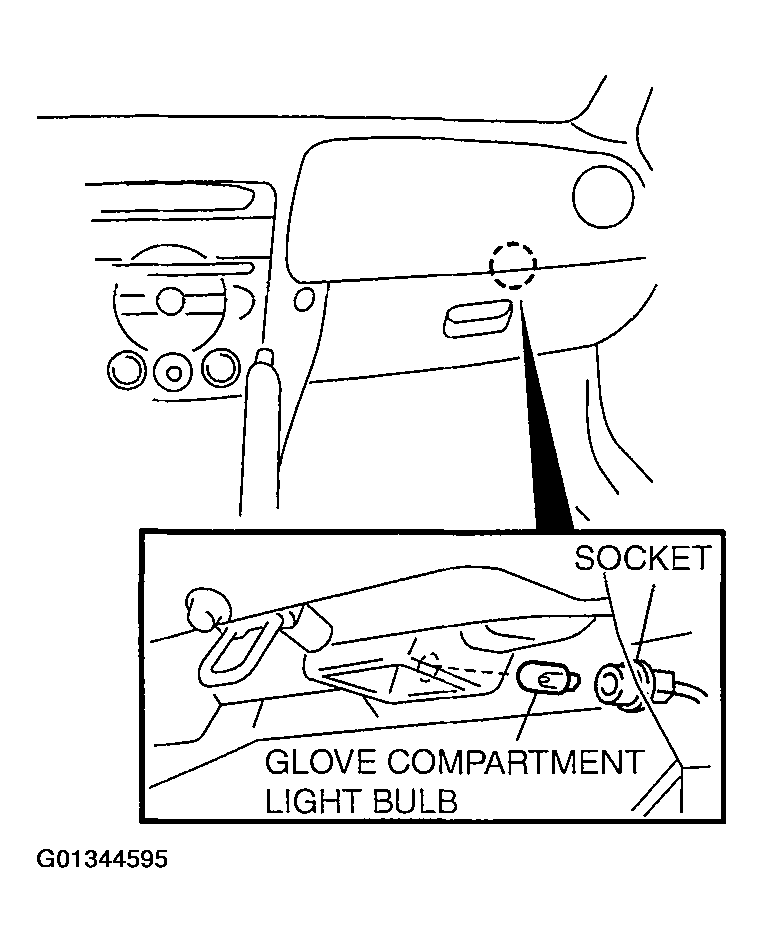

    Fig 1: Removing/Installing Glove Compartment Light Bulb
    G01344595Courtesy of MAZDA MOTORS CORP.
