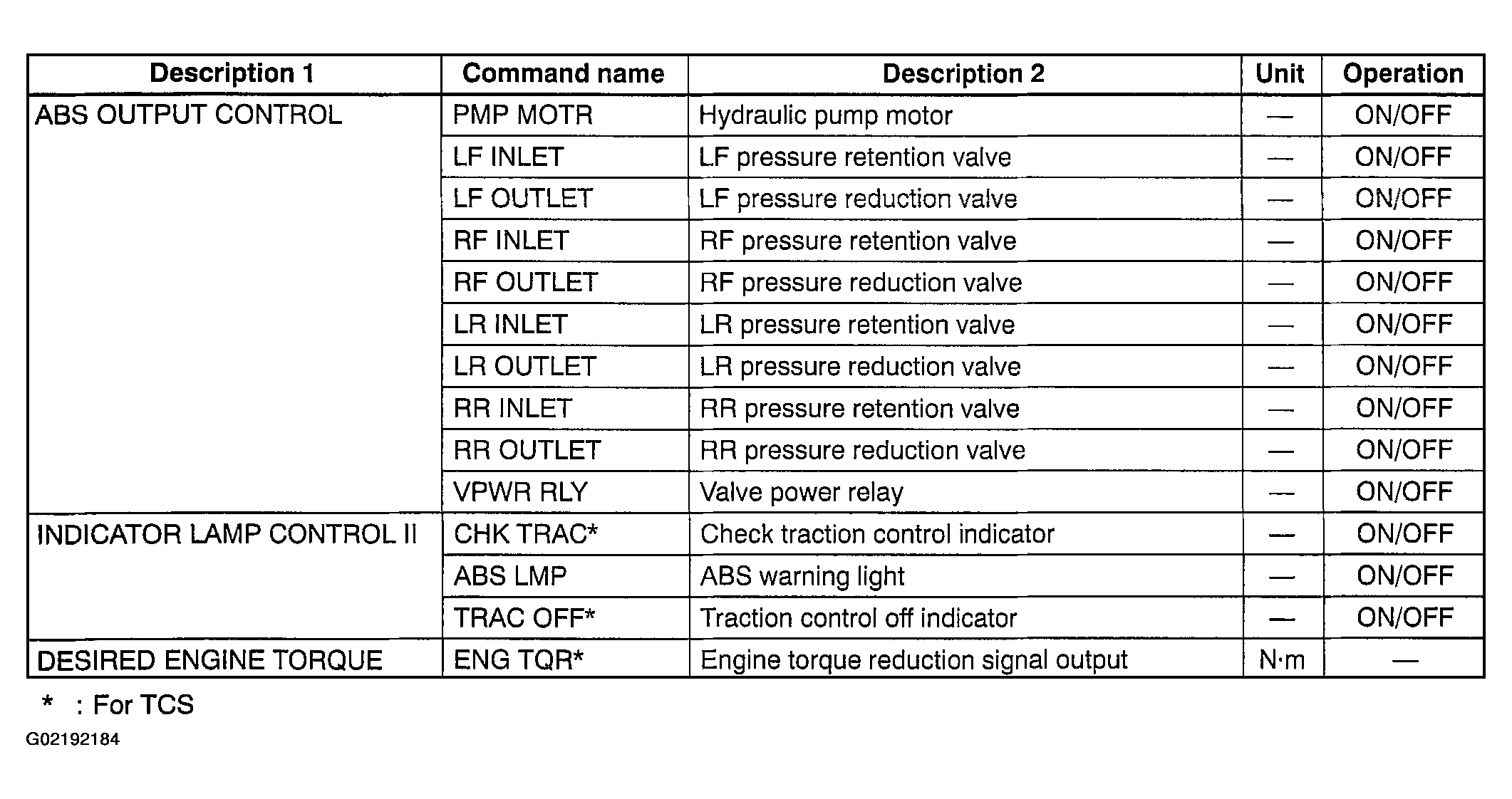

Active Command Modes Table

Fig 1: Active Command Modes Table

NOTE:

• When operating each valve forcibly, turn VPWR RLY on, and then each command on. VPWR RLY regulates the power supply for the eight valves.
