Diagnostic Trouble Code Table

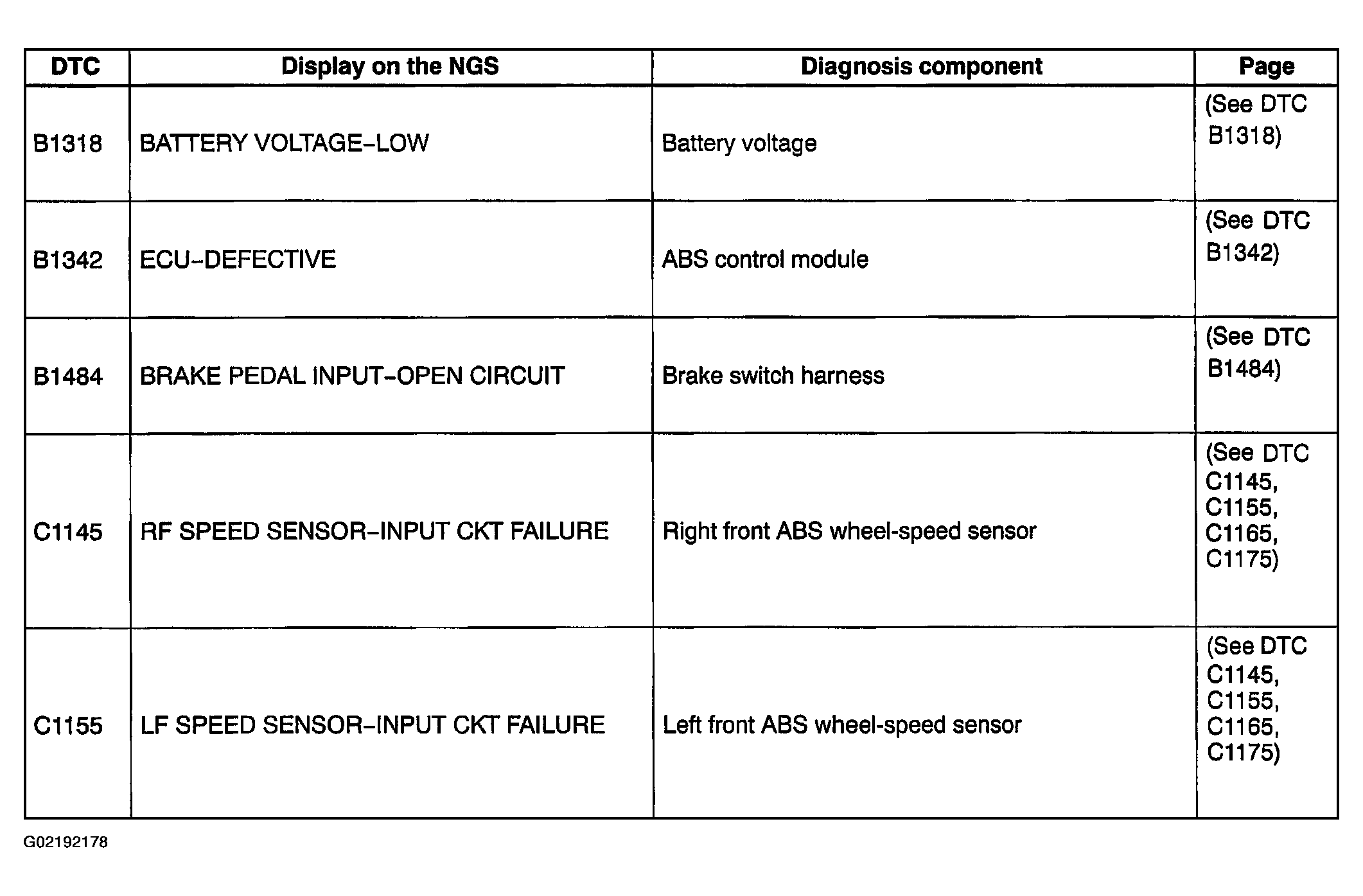

Fig 1: DTC Table (B1318; B1242; B1484; C1145 & C1155)

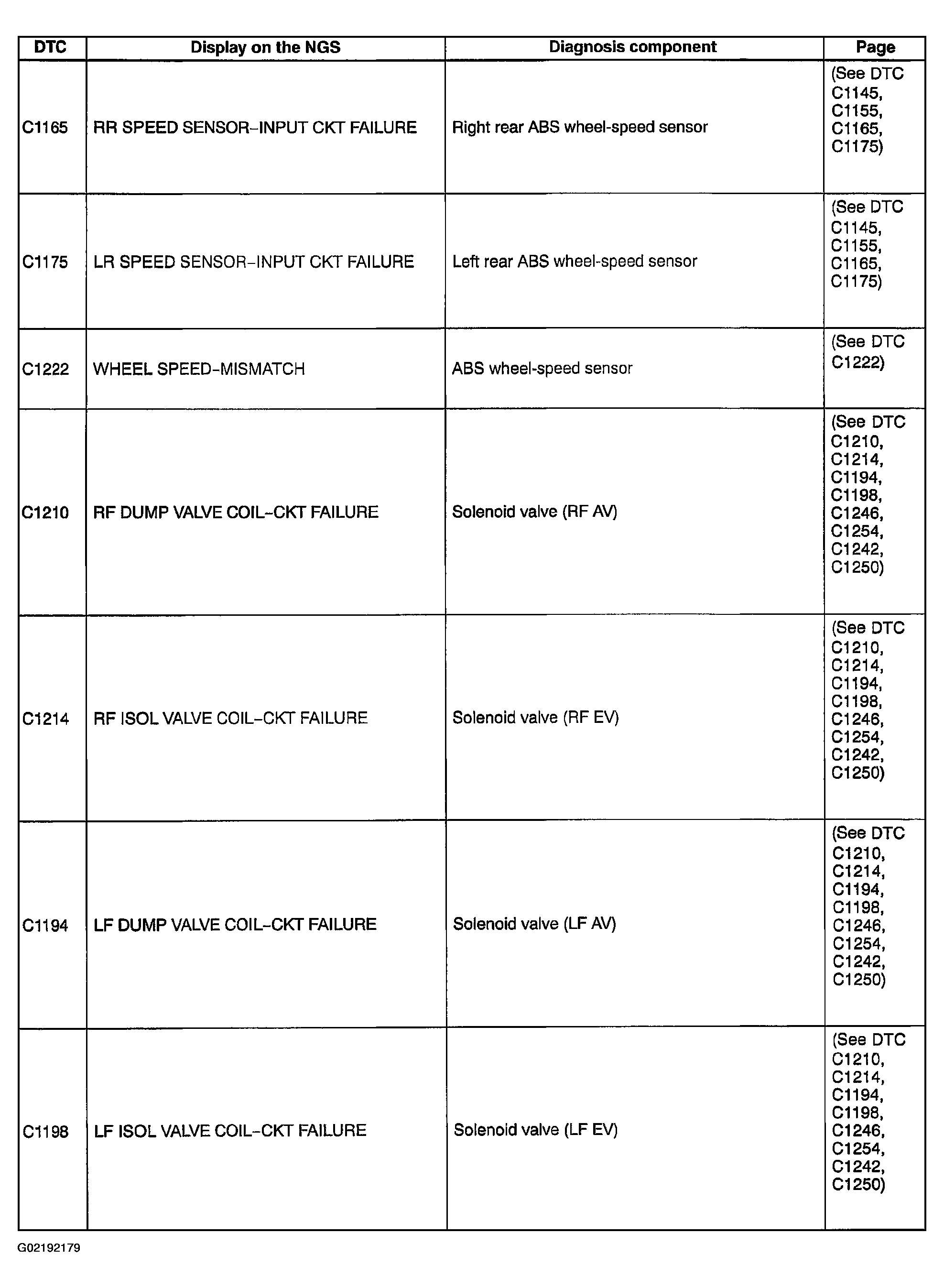

Fig 2: DTC Table (C1165; C1175; C1222; C1210; C1214; C1194 & C1198)

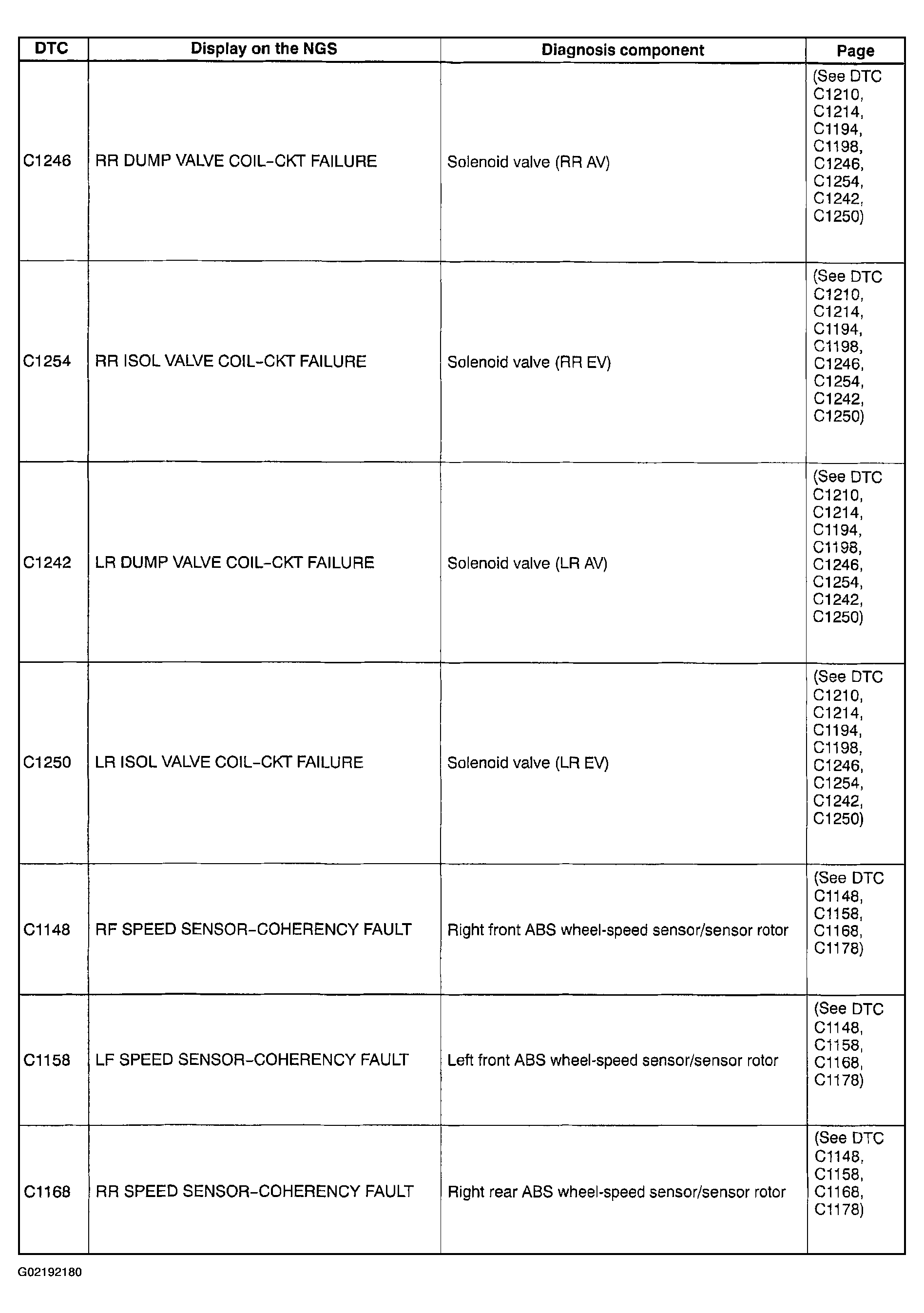

Fig 3: DTC Table (C1246; C1254; C1242; C1250; C1148; C1158 & C1168)

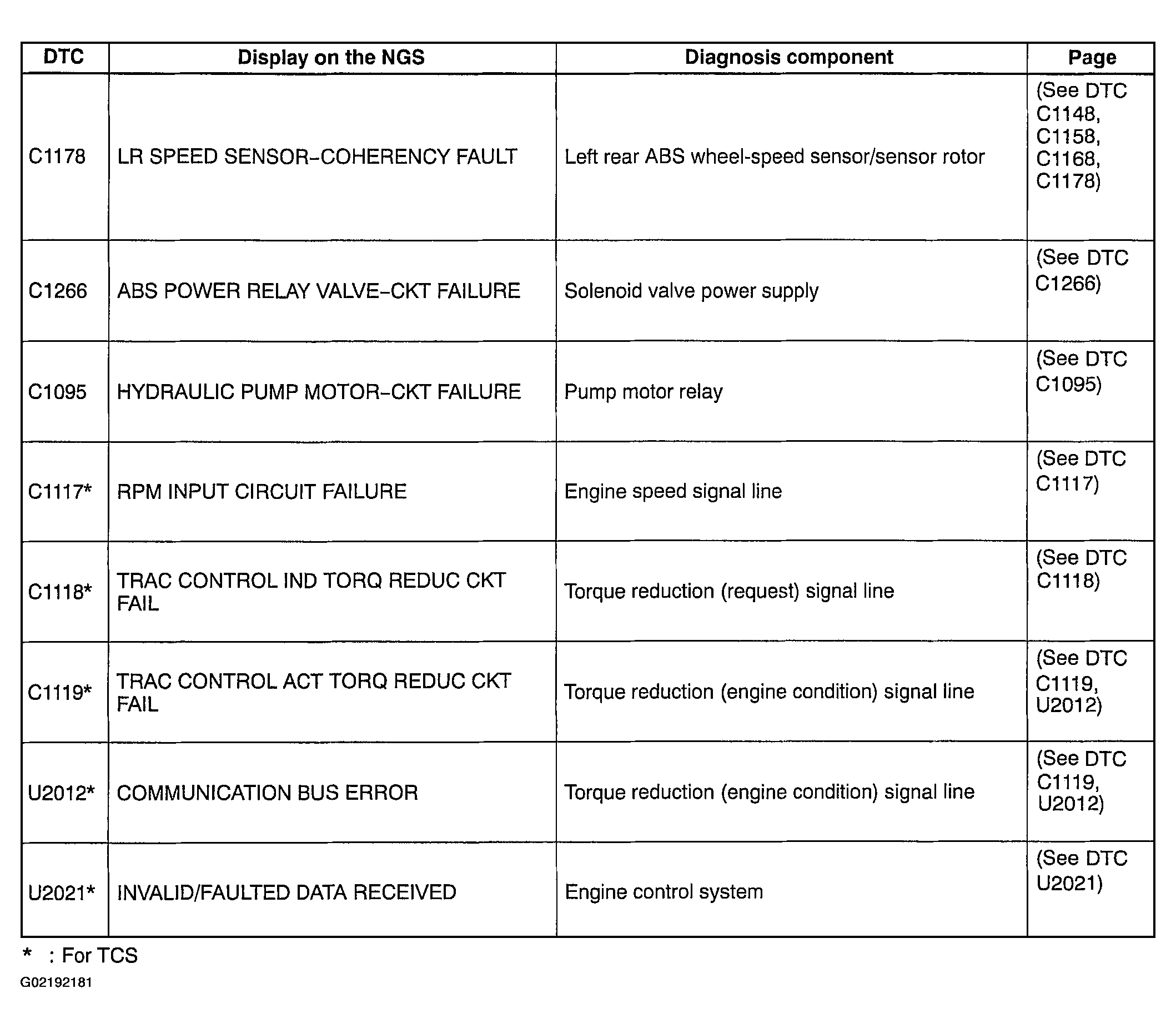

Fig 4: DTC Table (C1178; C1266; C1095; C1117; C1118; U2012 & U2021)

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC	Description
DTC B1318	ABS CM POWER SUPPLY
DTC B1342	ABS CM
DTC B1484	BRAKE SWITCH HARNESS
DTC C1095	ABS MOTOR, MOTOR RELAY
DTC C1145, C1155, C1165, C1175	ABS WHEEL-SPEED SENSOR
DTC C1148, C1158, C1168, C1178	ABS WHEEL-SPEED SENSOR/SENSOR ROTOR
DTC C1222	ABS WHEEL-SPEED SENSOR
DTC C1210, C1214, C1194, C1198, C1246, C1254, C1242, C1250	PRESSURE REDUCTION/RETENTION VALVE
DTC C1266	VALVE RELAY POWER SUPPLY
DTC C1117	ENGINE SPEED SIGNAL LINE
DTC C1118	TORQUE REDUCTION (REQUEST) SIGNAL LINE
DTC C1119, U2012	TORQUE REDUCTION (ENGINE CONDITION) SIGNAL LINE
DTC U2021	ENGINE CONTROL SYSTEM
