Antilock Brake System
›
Structural View
Structural View

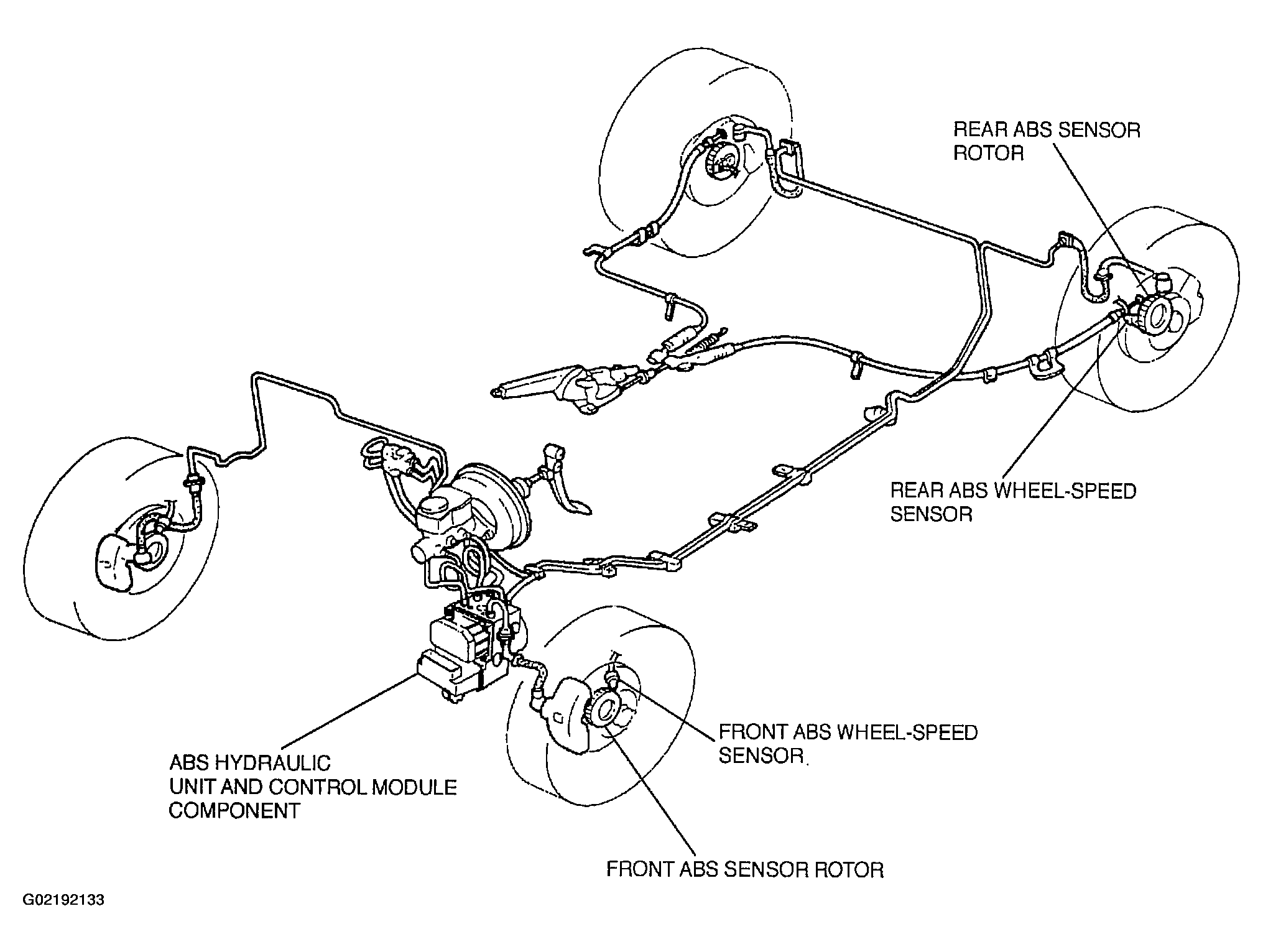

Fig 1: Antilock Brake System Structural View
