Exhaust System Components
›
Notes
Exhaust System Components: Notes
The exhaust system consists of the components shown in the illustrations.

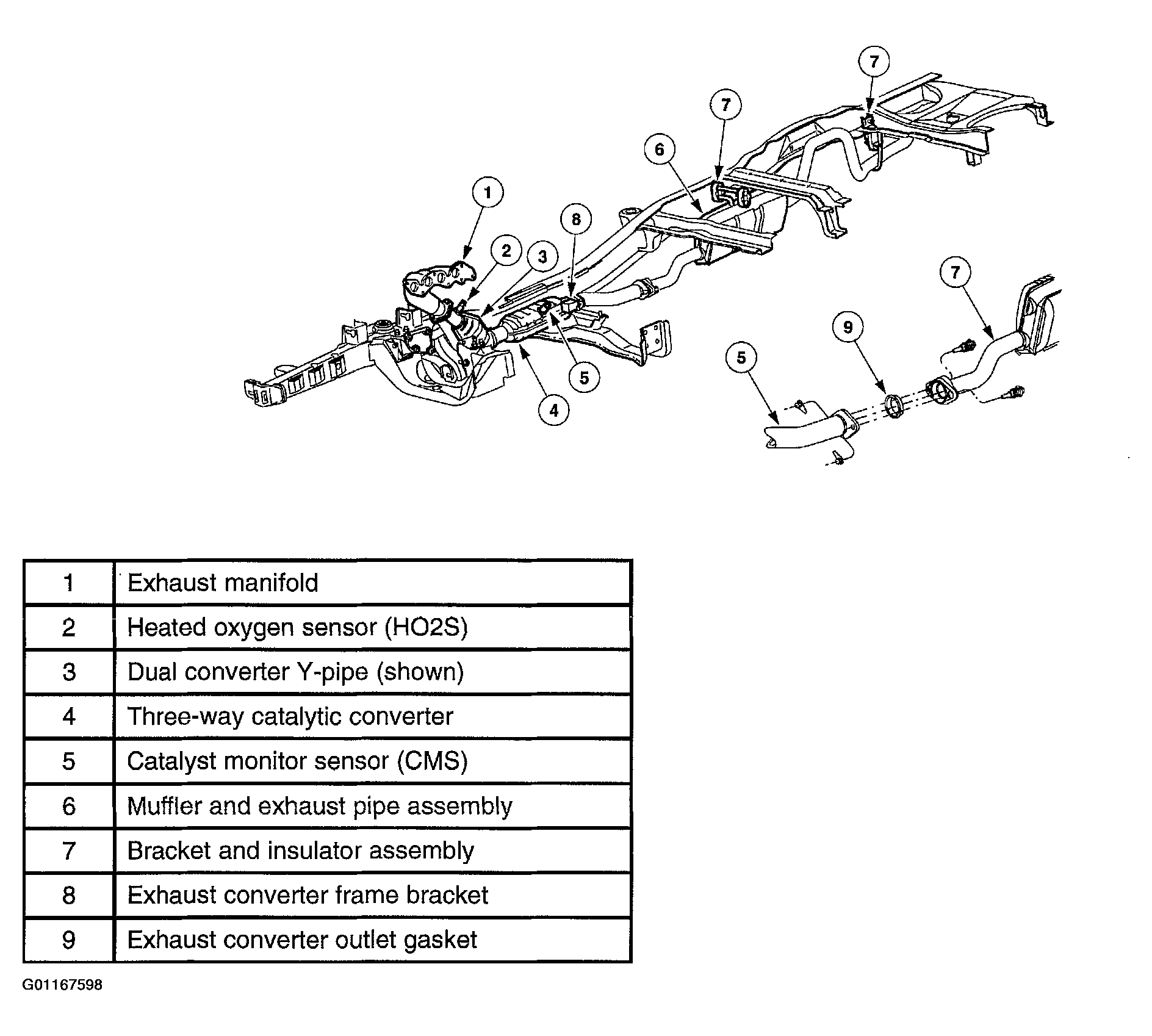

Fig 1: Identifying Exhaust System Components
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
