Removal Note

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Axle tube bushing removal shown, axle housing bushing is a similar procedure.

Remove the front axle assembly. See FRONT AXLE ASSEMBLY REMOVAL/INSTALLATION .
Position the tube bushing removal or equivalent tools.
1. Position Bushing Remover/Replacer Cup ST 205-371 or equivalent.
2. Position Drawbolt ST 205-374 or equivalent.
3. Thread the Bushing Remover Adapter ST 205-376 on the Drawbolt ST 205-374 .

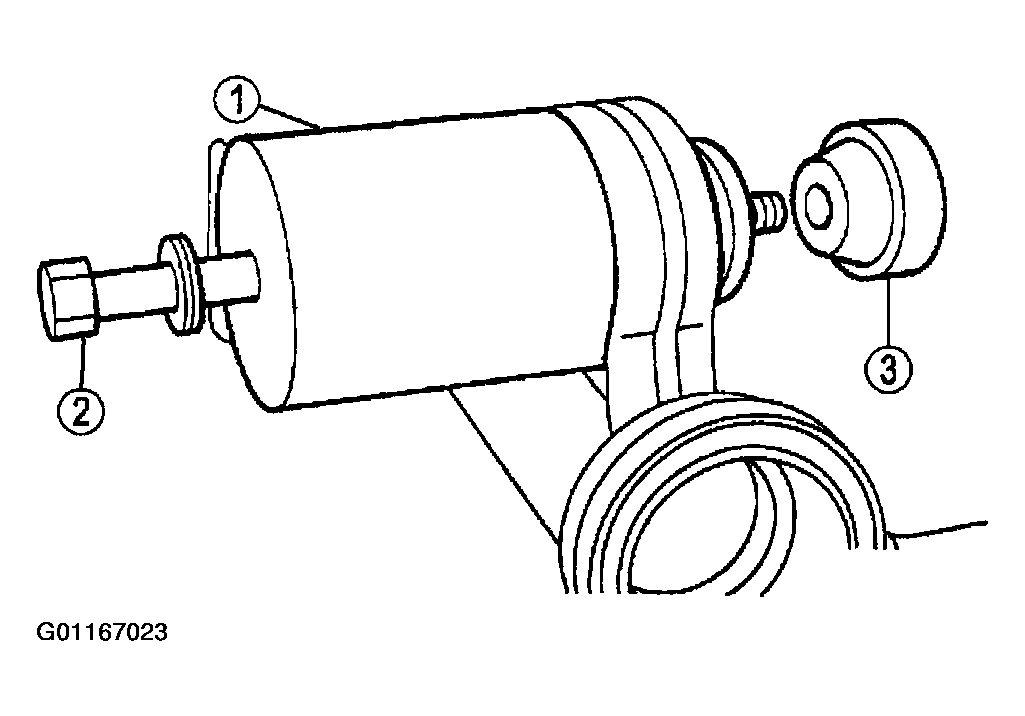

Fig 1: Positioning Tube Bushing Remover
Courtesy of MAZDA MOTORS CORP.
Tighten the Drawbolt ST 205-374 to remove the bushing.

Fig 2: Removing Tube Bushing
Courtesy of MAZDA MOTORS CORP.
