Clutch Component Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

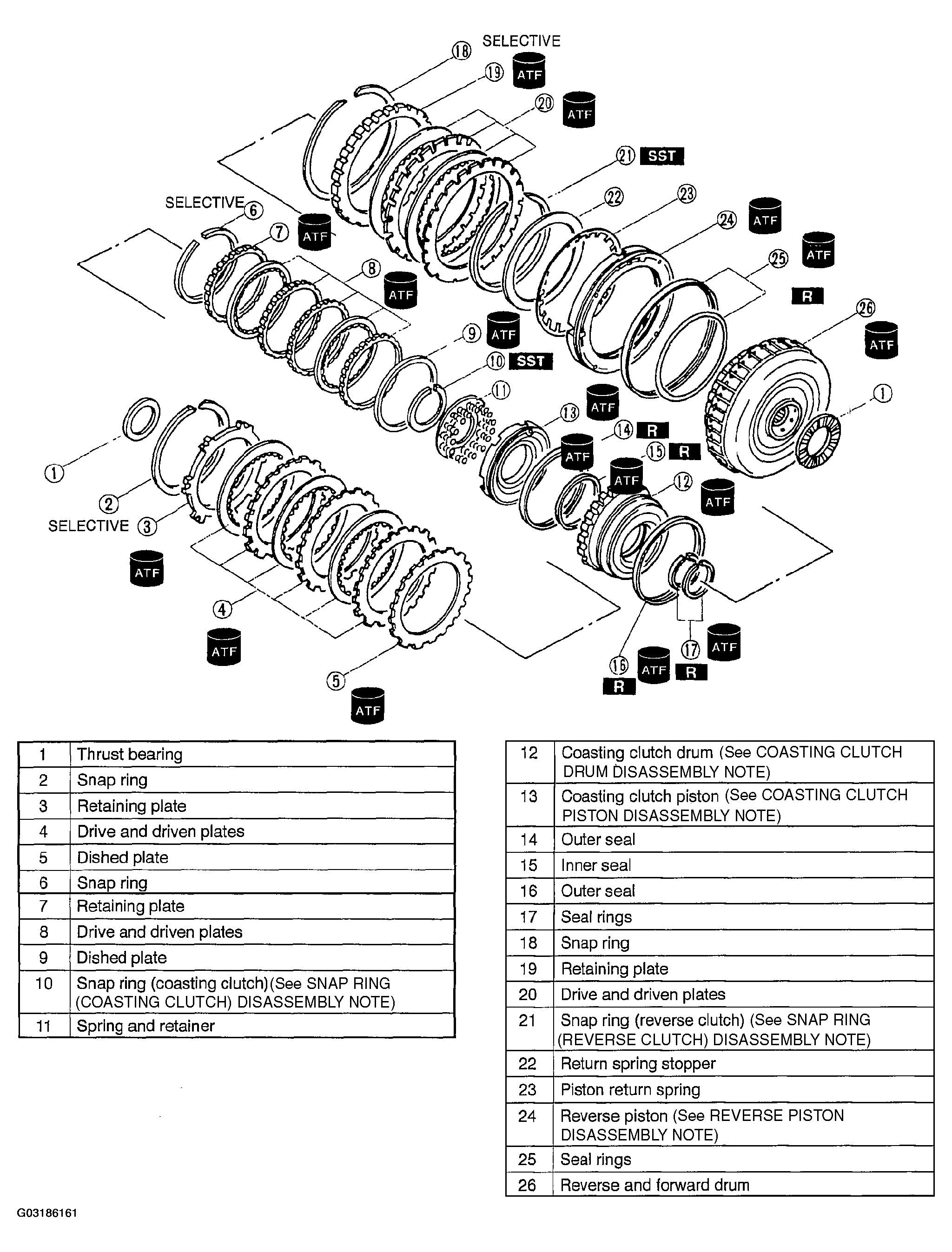

    Fig 1: Disassembling Clutch Component
    G03186161
