Heater Unit Removal/Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
- Remove the cooling unit. (See 07-11-12 COOLING UNIT COOLING UNIT REMOVAL/INSTALLATION .)
- Remove the rear duct.
- Disconnect the heater hoses.

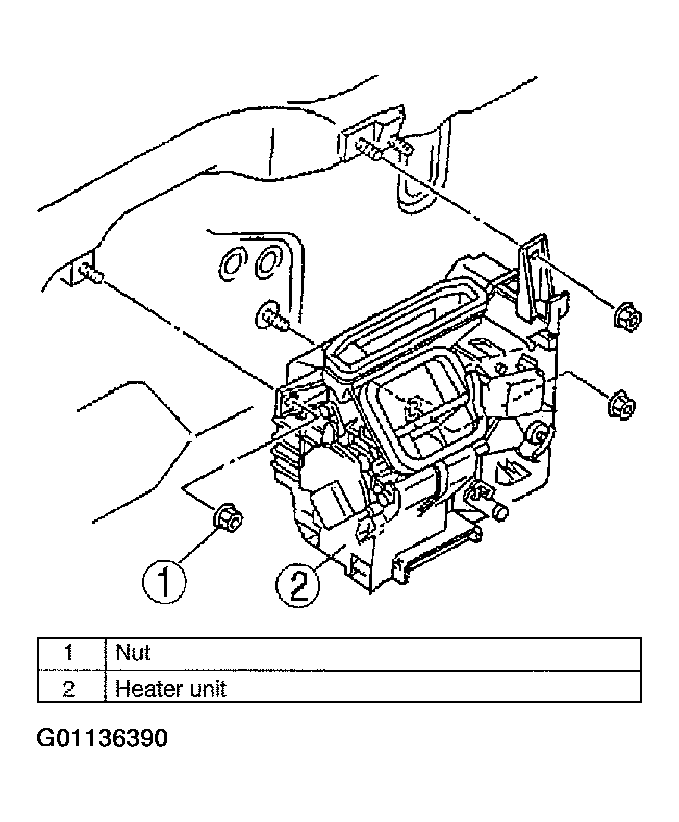

- Remove in the order indicated in Fig 1 .
- Install in the reverse order of removal.
