Power Steering Oil Pump (L3) Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The following procedure is for replacement of the O-ring and oil seal only. Replace the pump component if other repairs are necessary.

Disassemble in the order indicated in Fig 1 .

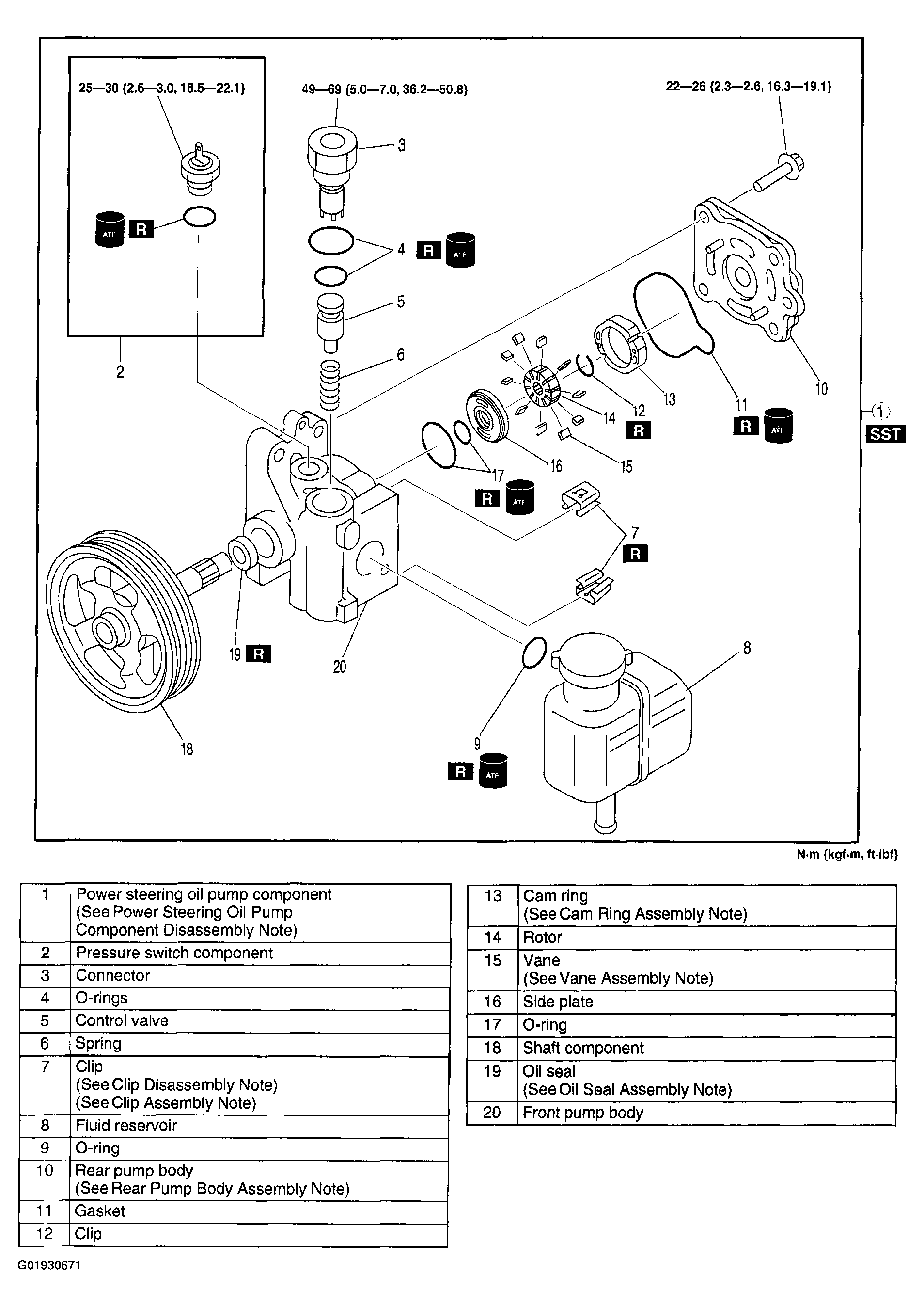

Fig 1: Exploded View Of Power Steering Oil Pump (L3)
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
