Shift Speed Specifications

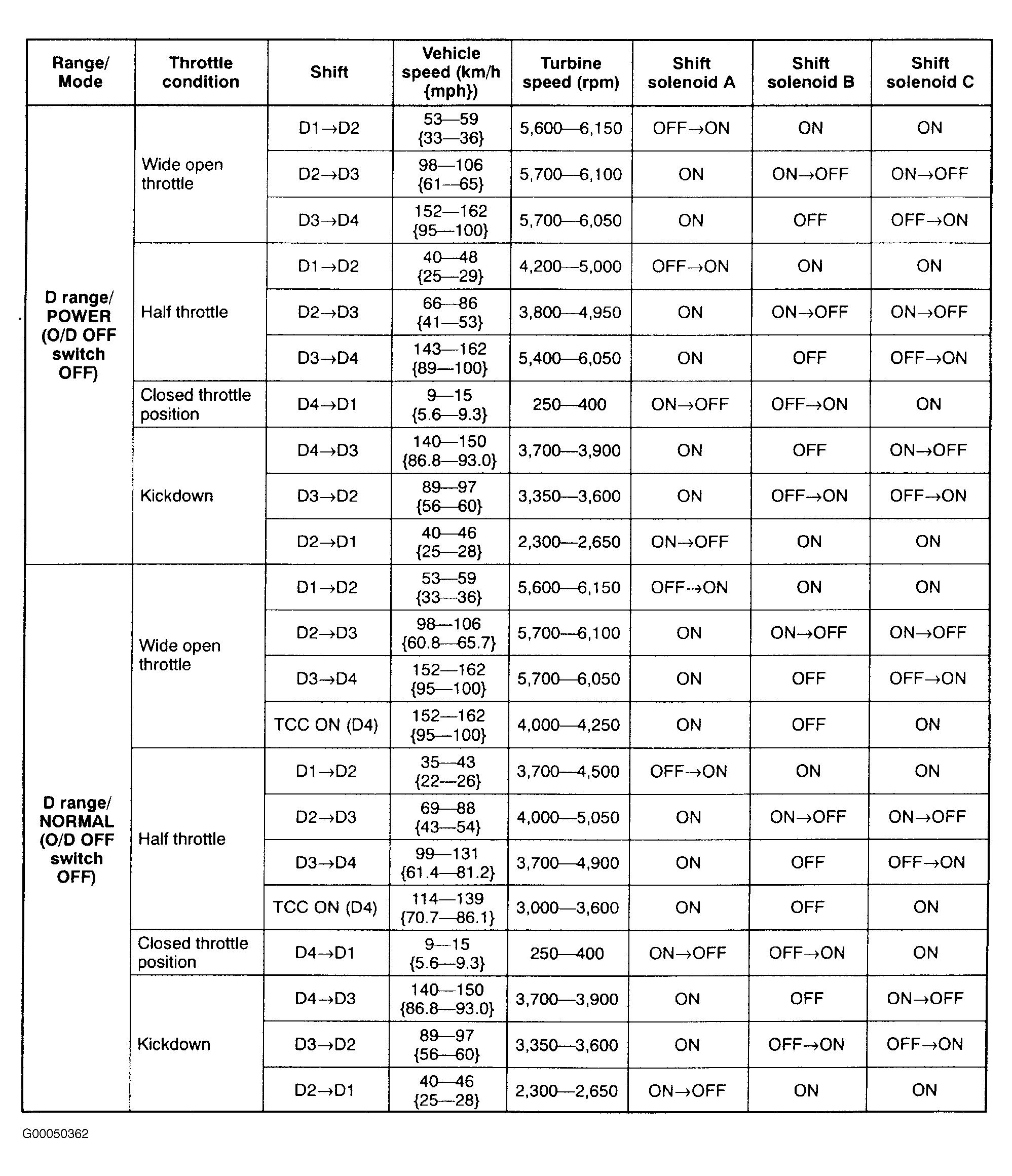

Fig 1: Shift Speed Specifications ("D" Ranges - 1 Of 3)
Courtesy of MAZDA MOTORS CORP.

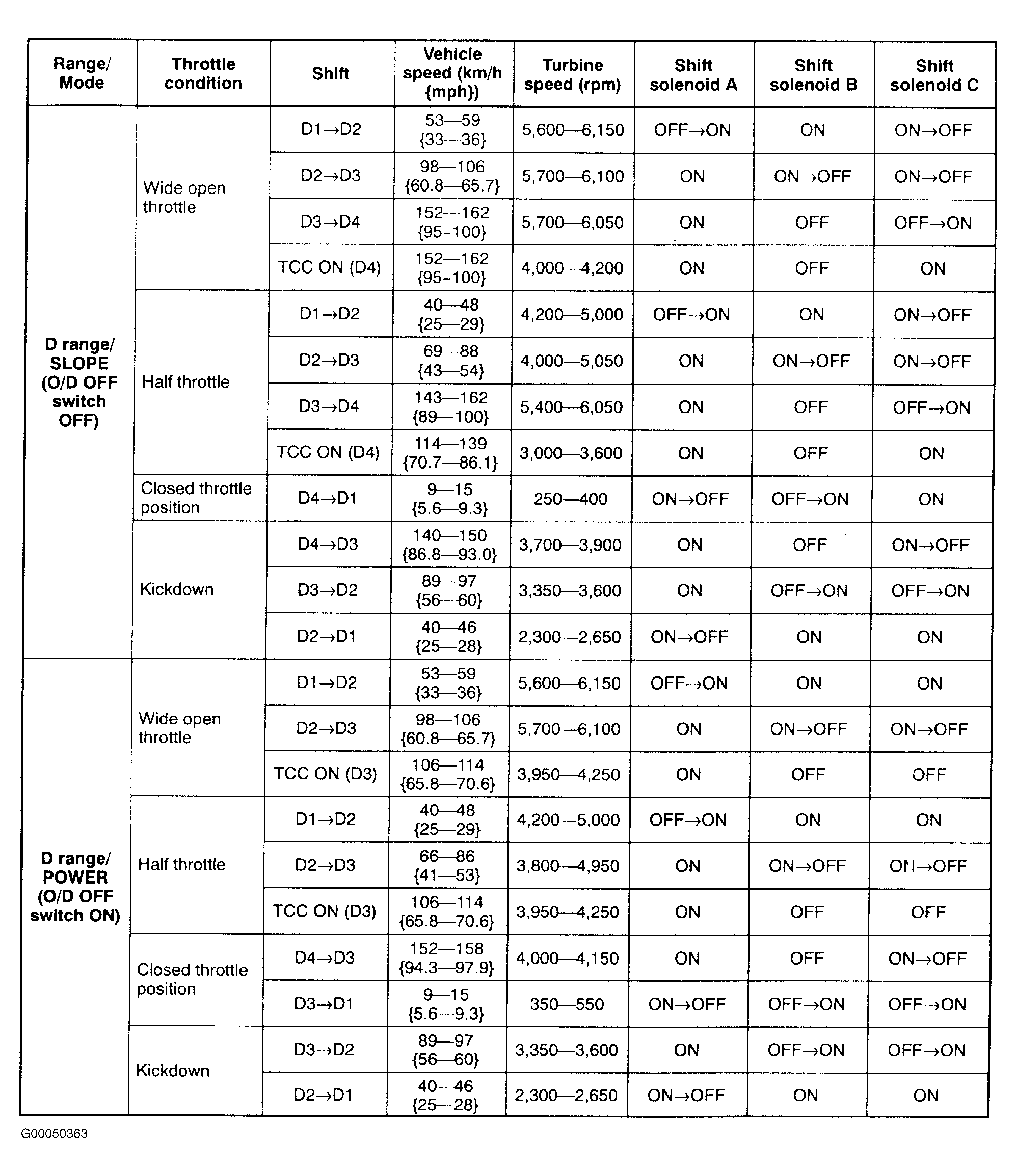

Fig 2: Shift Speed Specifications ("D" Ranges - 2 Of 3)
Courtesy of MAZDA MOTORS CORP.

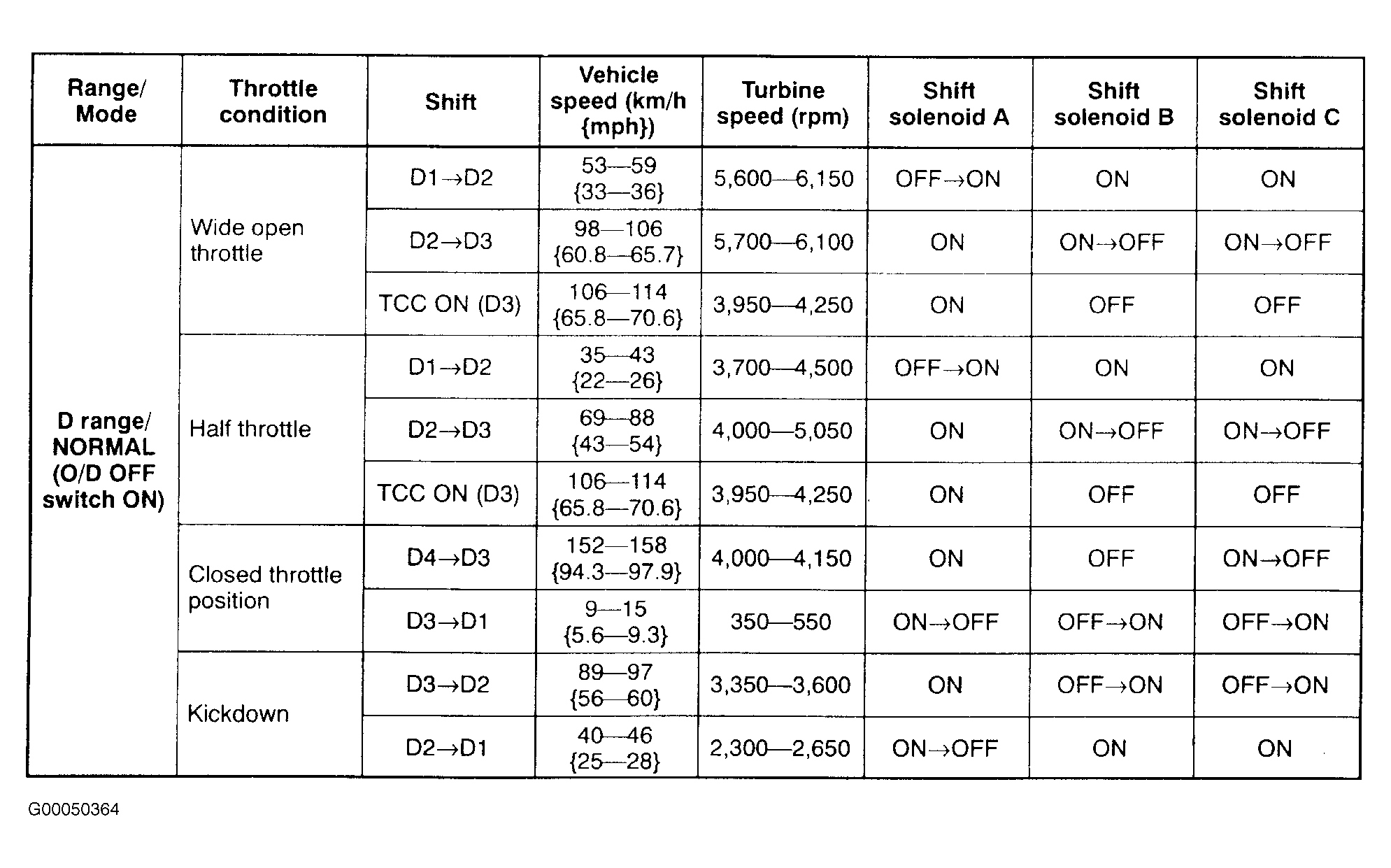

Fig 3: Shift Speed Specifications ("D" Ranges - 3 Of 3)
Courtesy of MAZDA MOTORS CORP.

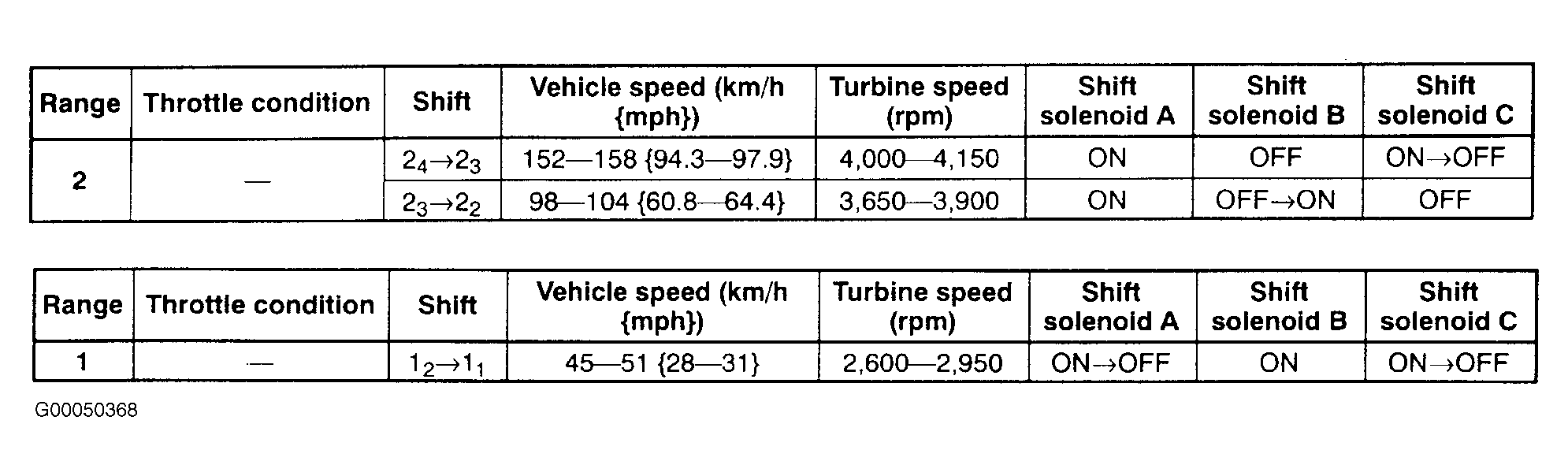

Fig 4: Shift Speed Specifications ("2" & "L" Ranges)
Courtesy of MAZDA MOTORS CORP.

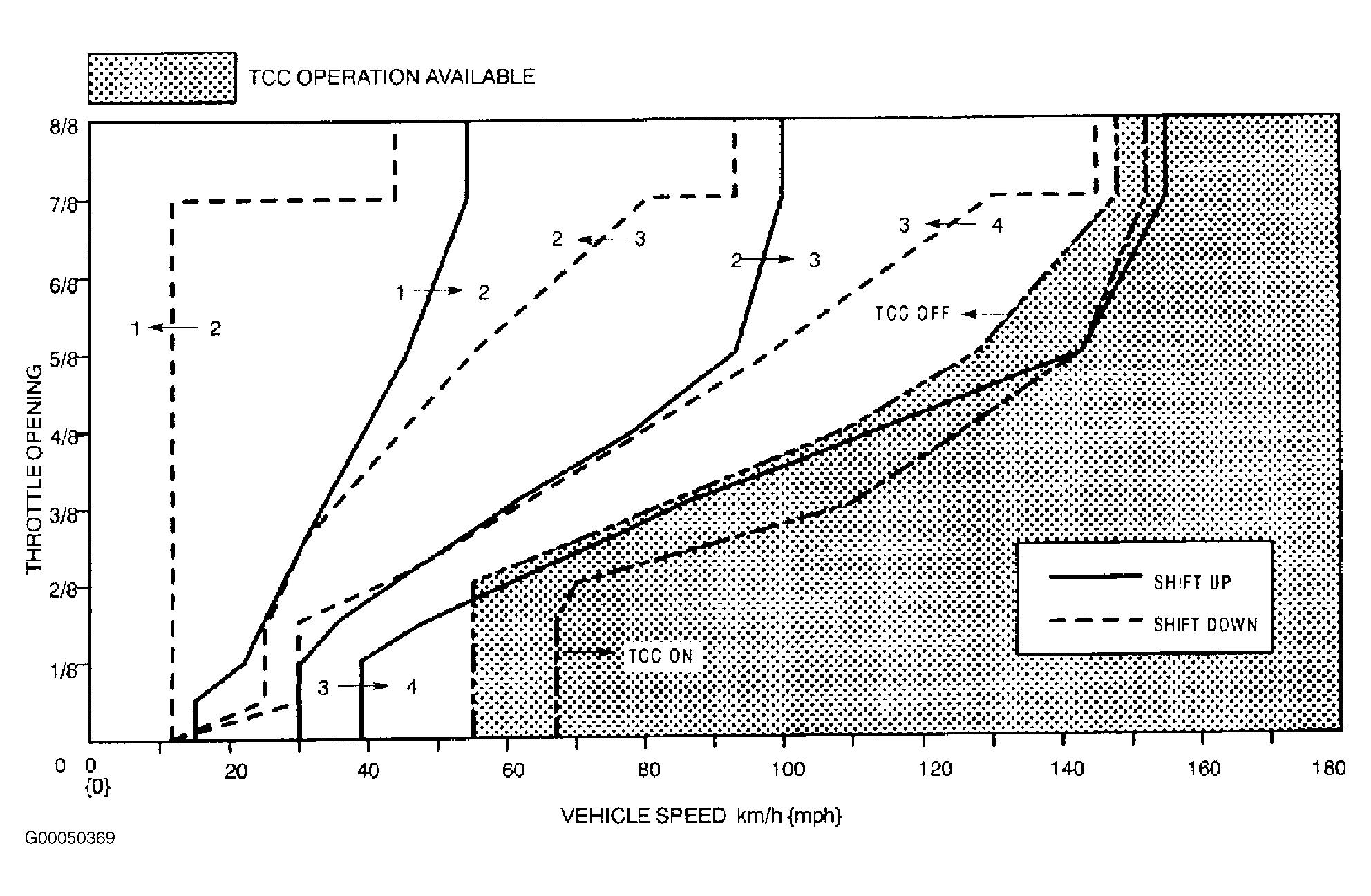

Fig 5: TCC Operation Pattern
Courtesy of MAZDA MOTORS CORP.
