Bearing Cover Component Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

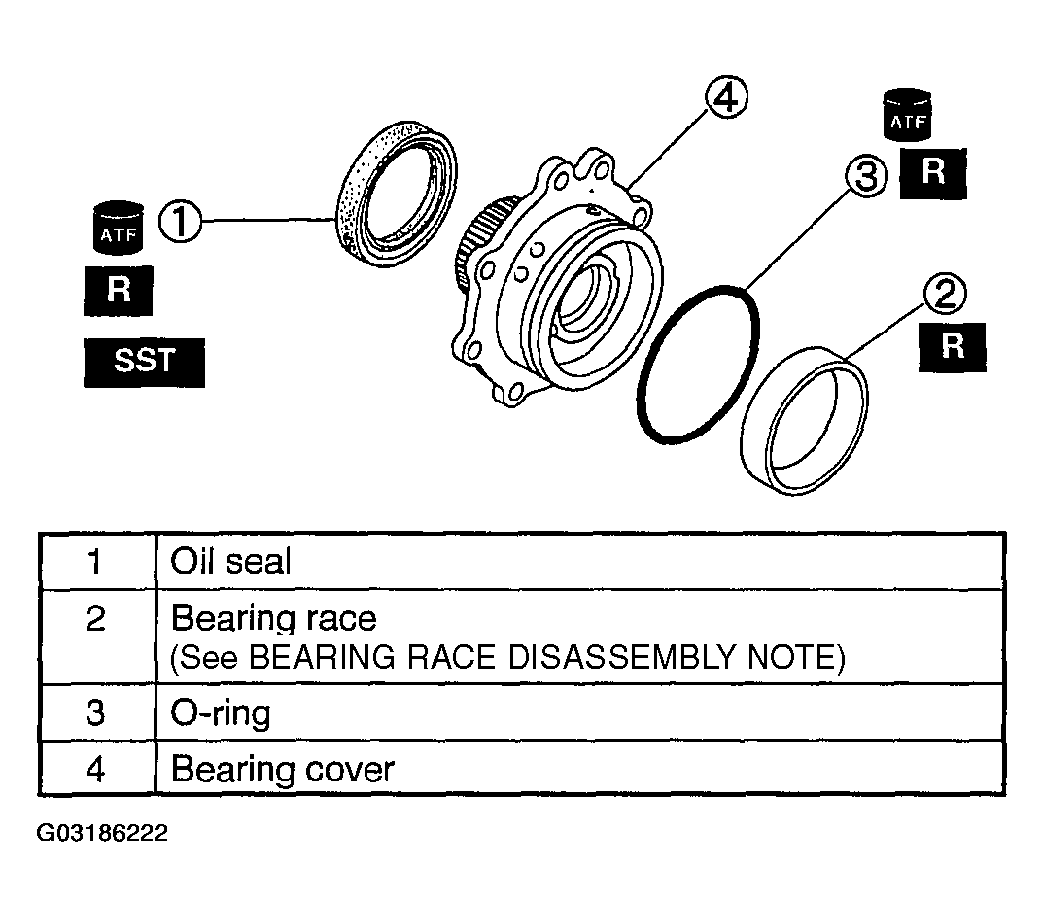

Fig 1: Disassembling Bearing Cover Component
G03186222
