Oil Pump Disassembly: Notes

  1. Disassemble in the order indicated in the figure.

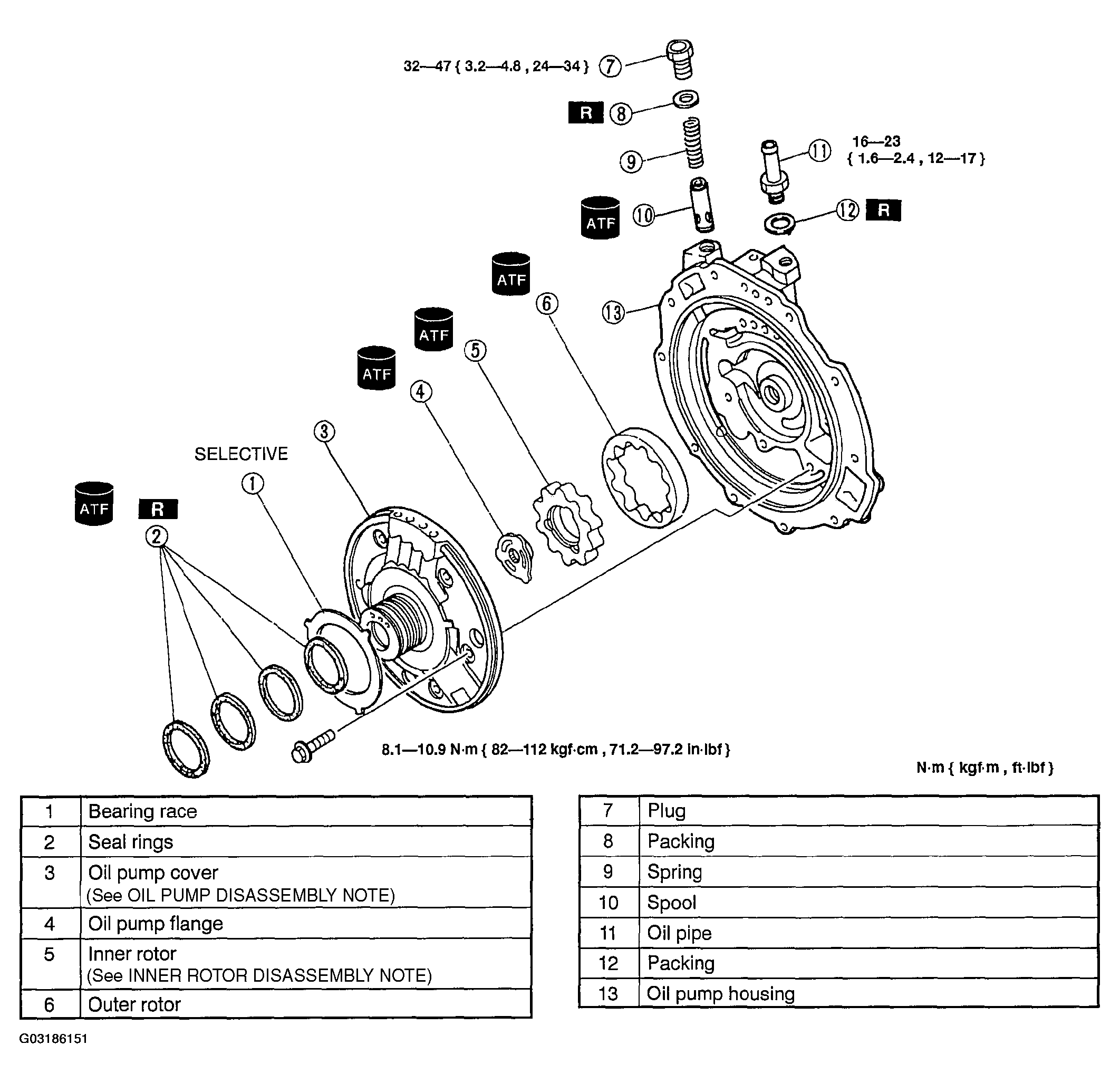

    Fig 1: Disassembling Oil Pump
    G03186151
