Swing Louver Description

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

The swing louver is installed on the center vent and operates the right and left air distribution fins to send airflow evenly.

Structure

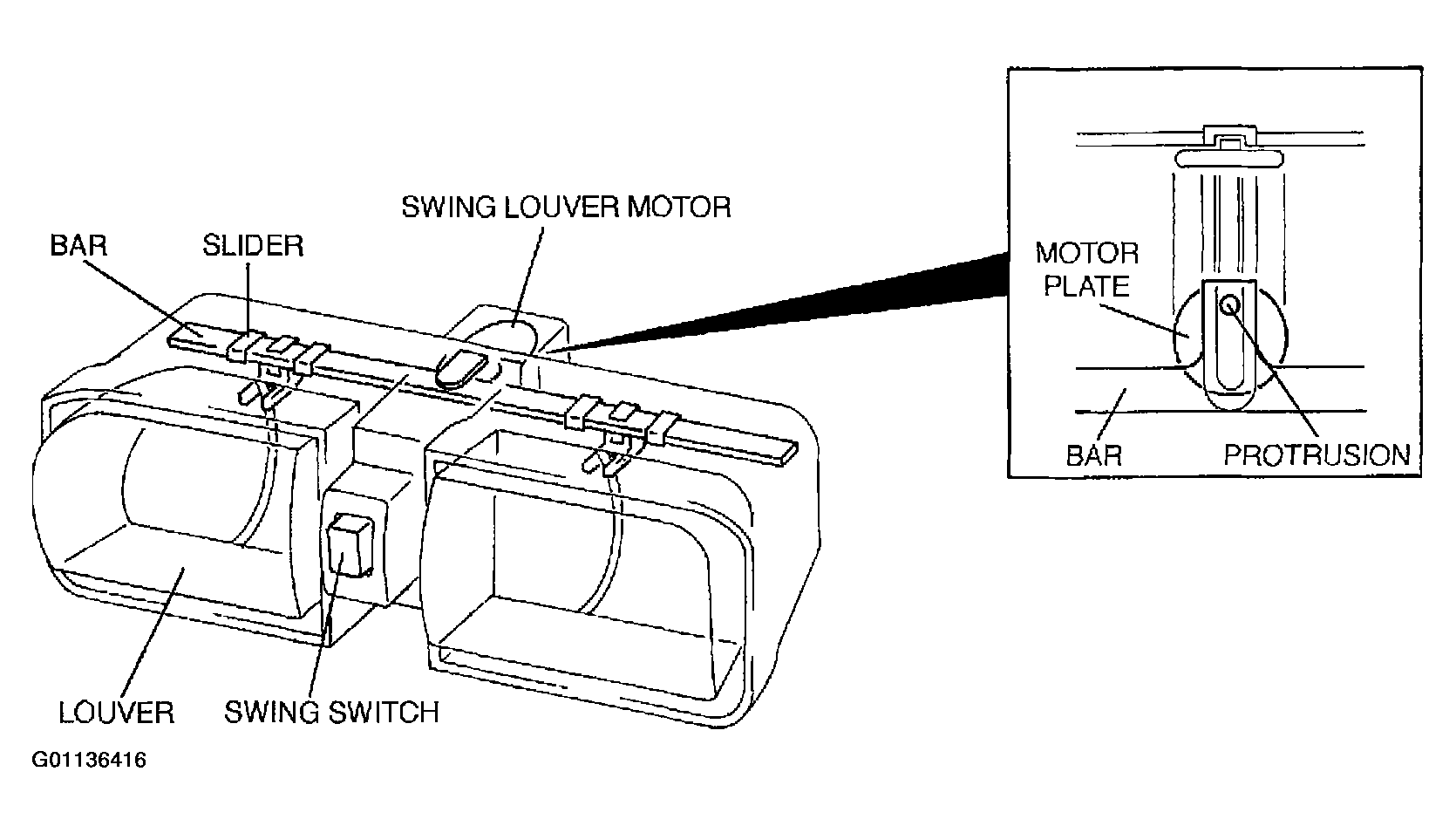

The swing louver consists of a swing switch, swing louver motor, a bar, two sliders, and two louvers.

Fig 1: Identifying Swing Louver Components
Courtesy of MAZDA MOTORS CORP.

Mechanical operation

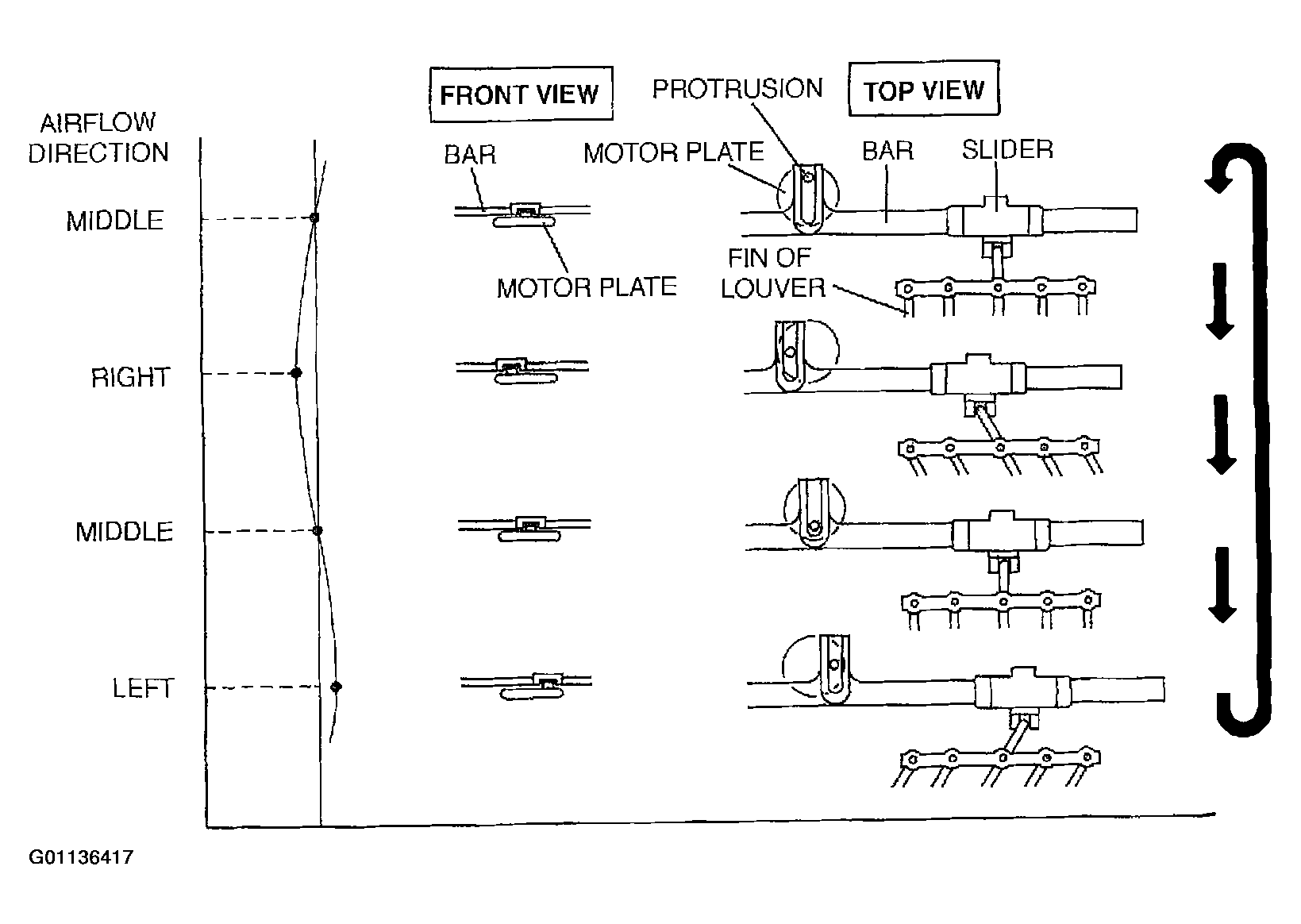

When the swing motor rotates, the protrusion on the motor plate rotates.
The protrusion on the motor plate moves within a groove on the bar.
The fins of the louver move right and left because the bar, slider, and louver are synchronized.

Fig 2: Identifying Swing Louver Mechanical Operation
Courtesy of MAZDA MOTORS CORP.

Electric operation

The current flows to the swing louver motor when the switch is turned on and the motor operates.
