2-3 Accumulator Disassembly

  1. Disassemble in the order indicated in the figure.

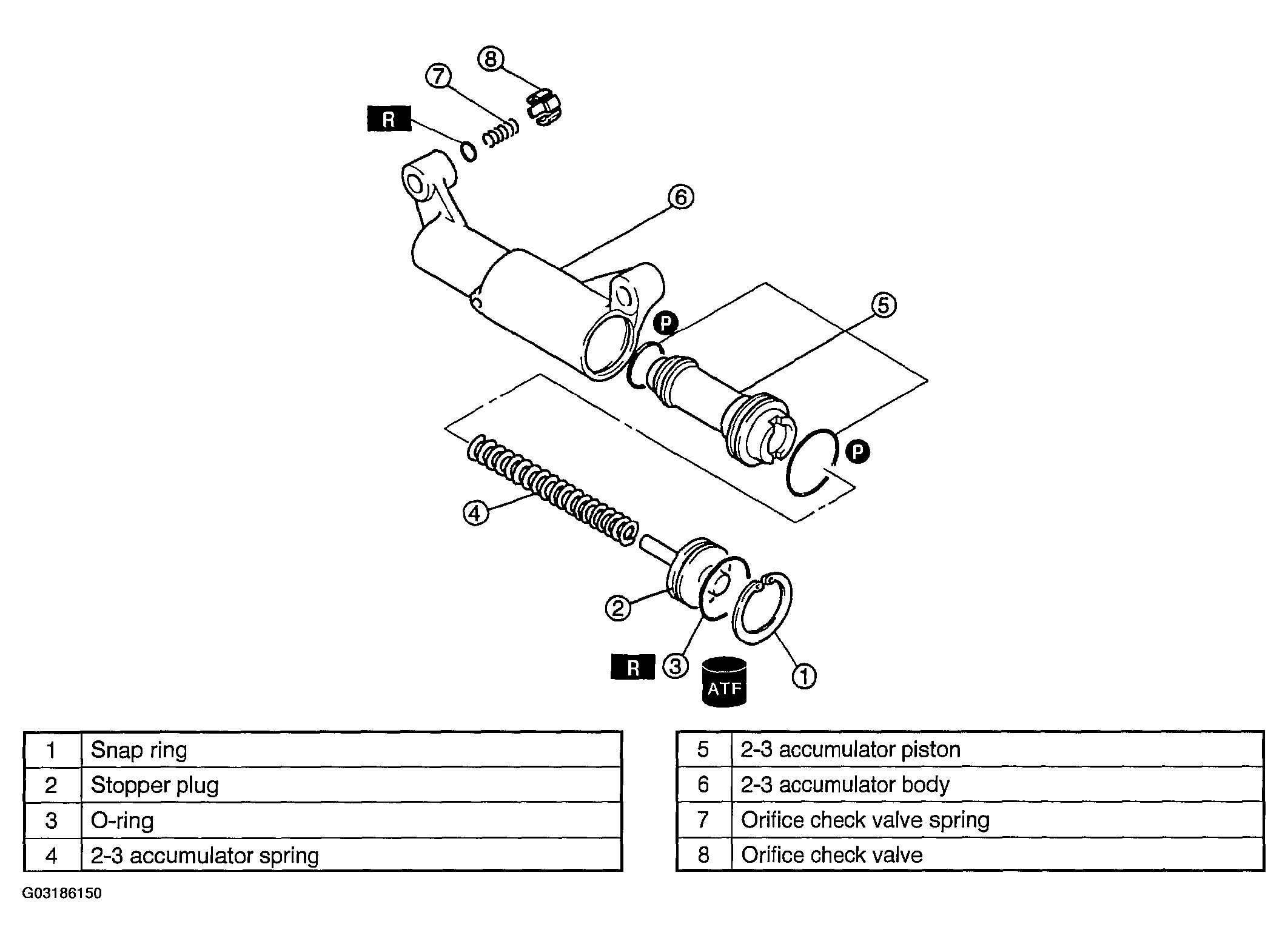

    Fig 1: Disassembling 2-3 Accumulator
    G03186150
