2-4 Brake Band Disassembly

  1. Disassemble in the order indicated in the figure.

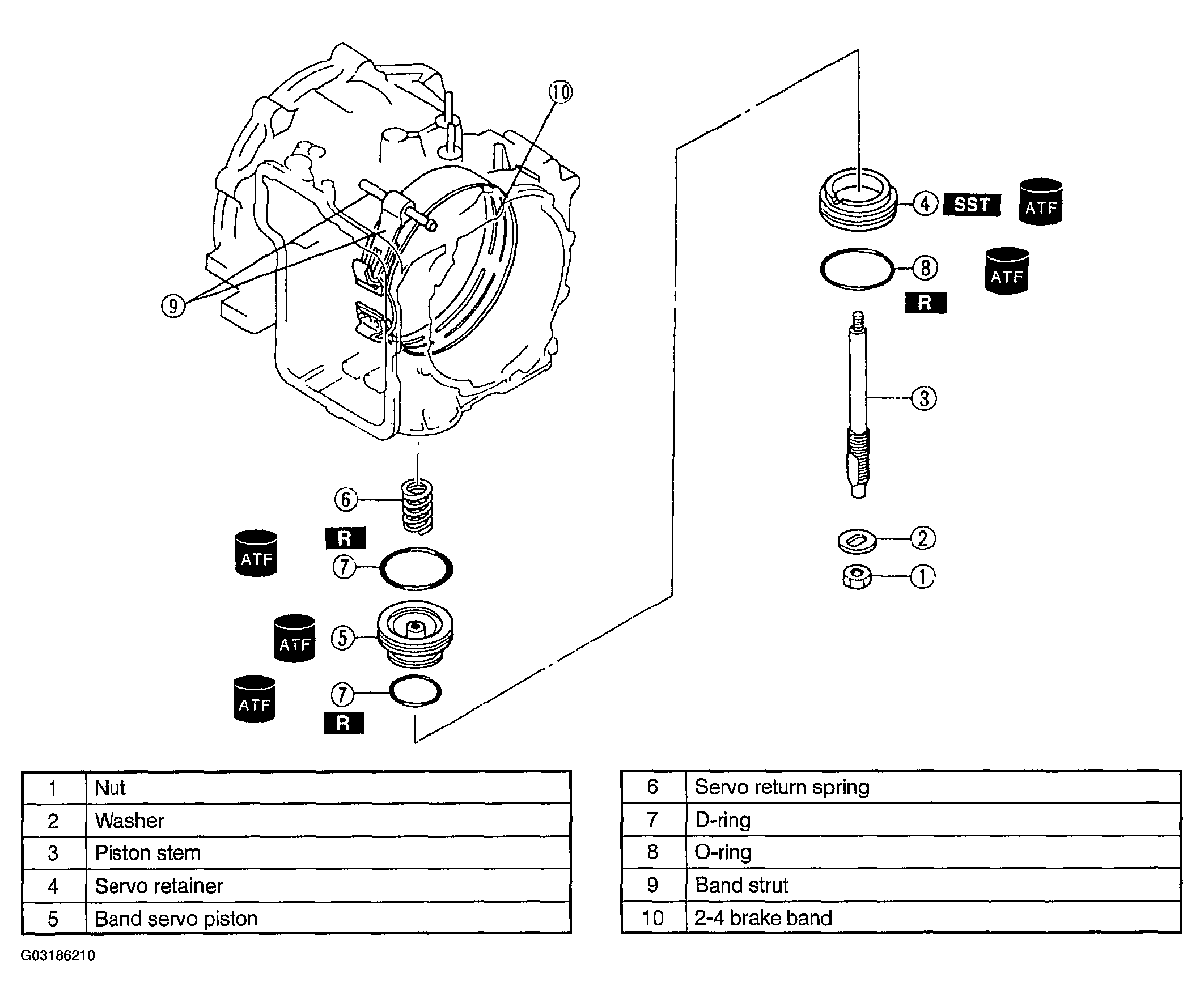

    Fig 1: Disassembling 2-4 Brake Band
    G03186210
